Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

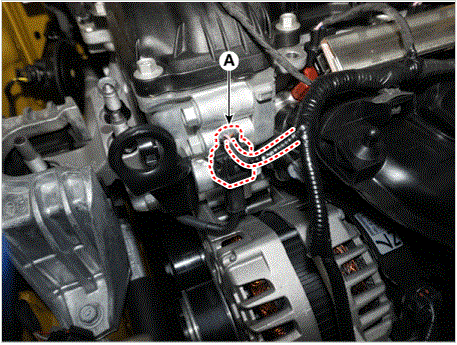

Disconnect the intake middle lock control solenoid connector (A)

Courtesy of KIA MOTORS AMERICA, INC.

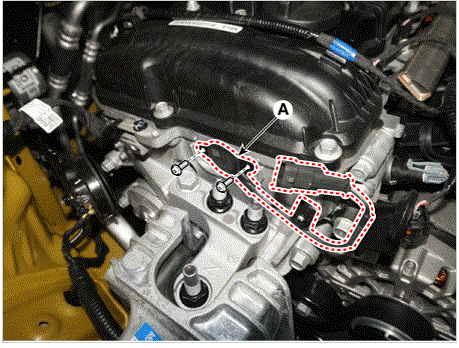

Remove the intake middle lock control solenoid (A) after loosening the mounting screws.
Tightening Torque: 8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
