Description & Operation: Description

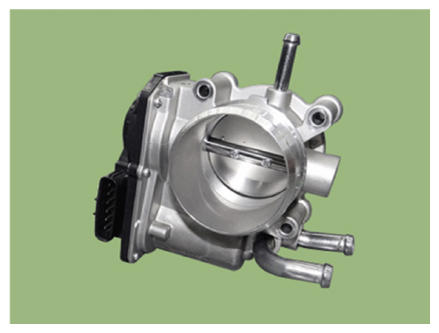

• The Electronic Throttle Control (ETC) System consists of a throttle body with an integrated control motor and throttle position sensor (TPS).
• The ECM uses the APS signal to calculate the target throttle angle; the position of the throttle is then adjusted via ECM control of the ETC motor.
• The TPS signal is used to provide feedback regarding throttle position to the ECM.

Courtesy of KIA MOTORS AMERICA, INC.
