DTC B1010-55: ESC Present Error - Coding Code Error
›
System Inspection
›
Vehicle S/W Management
Vehicle S/W Management
Inspection Condition
Inspection Procedure
Reference
Ignition "ON".
Connect KDS to "Data Link Connector (DLC)".

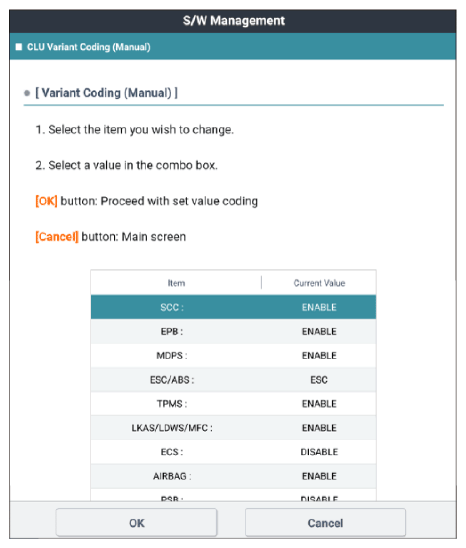

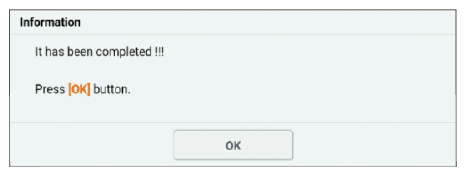

Perform "Vehicle S/W Management" of concerned component with KDS.

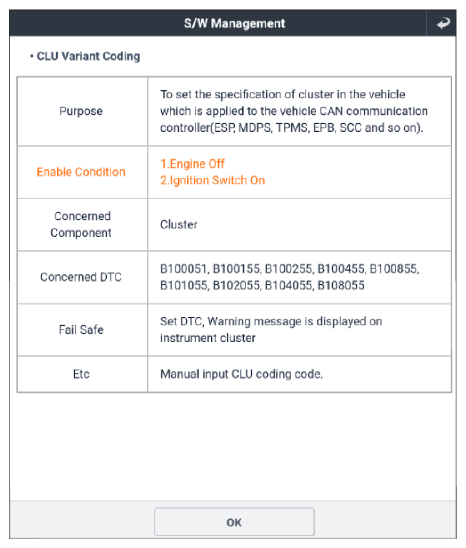

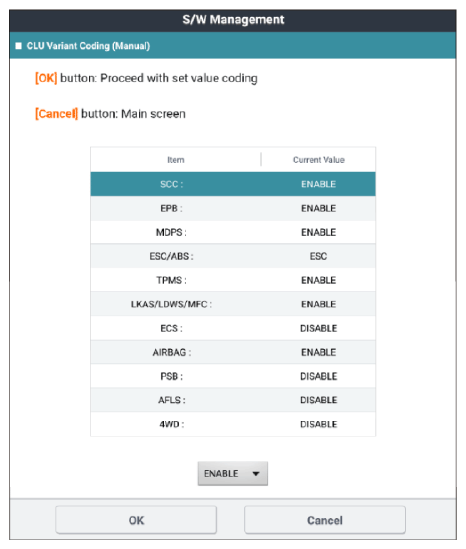

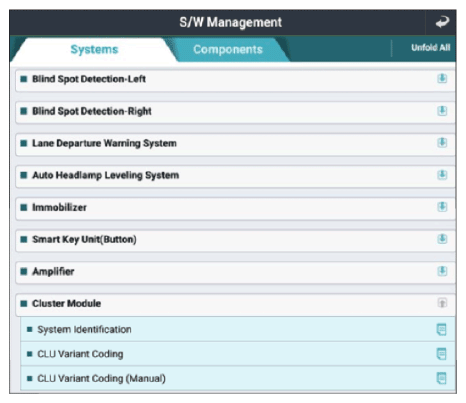

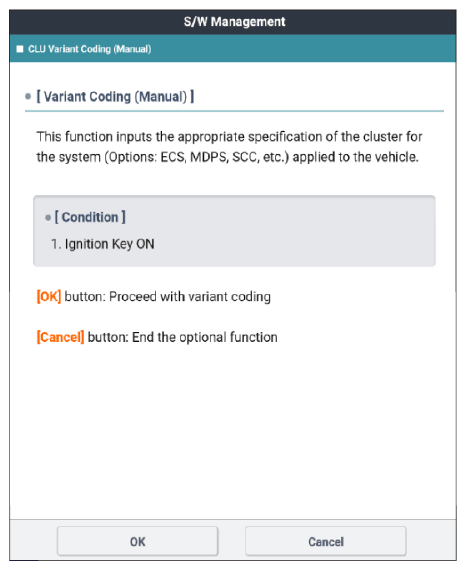

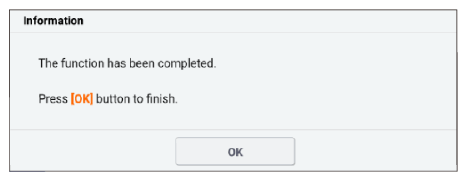

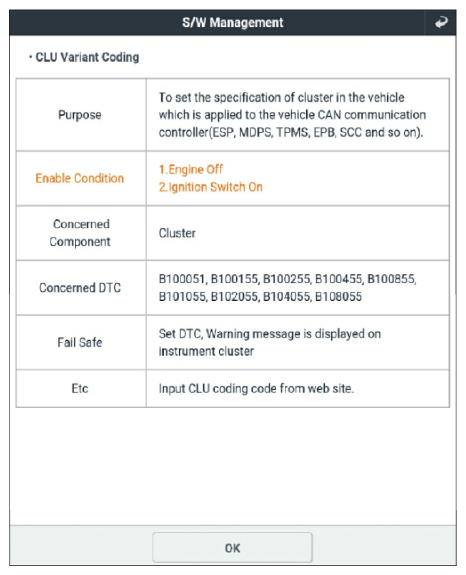

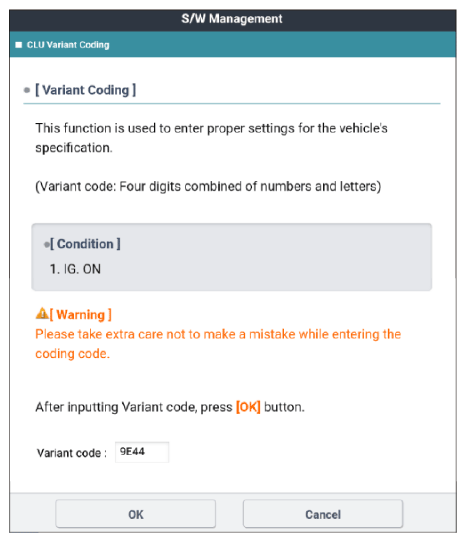

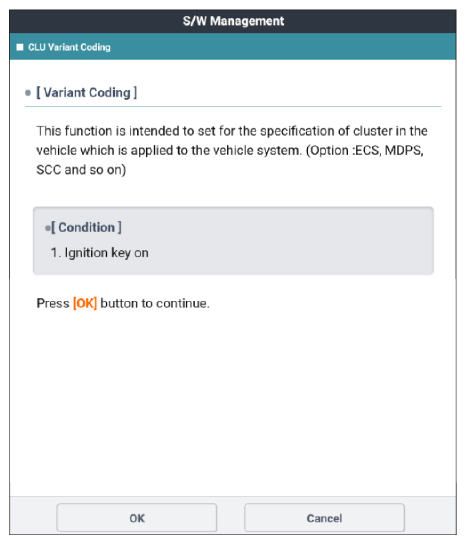

Fig. 1 to 10
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
