Liftgate Antenna

  1. Remove the rear transverse trim.

    (Refer to Body - "REAR TRANSVERSE TRIM ")

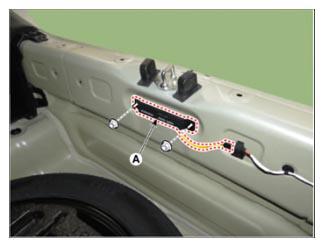

  2. Remove the liftgate antenna (A) by loosening the nuts after disconnecting the connector.
G15717131Courtesy of KIA MOTORS AMERICA, INC.
