Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

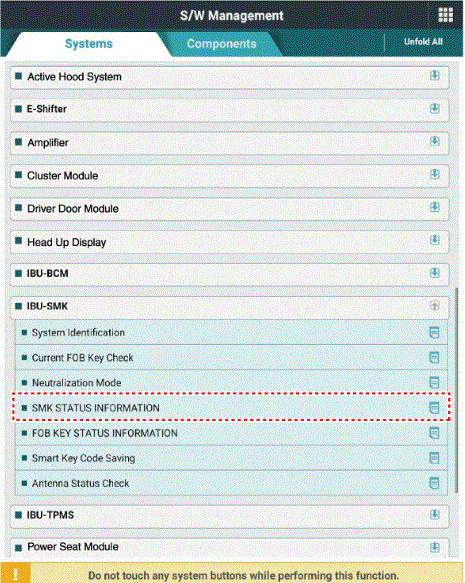

G15717153Courtesy of KIA MOTORS AMERICA, INC.

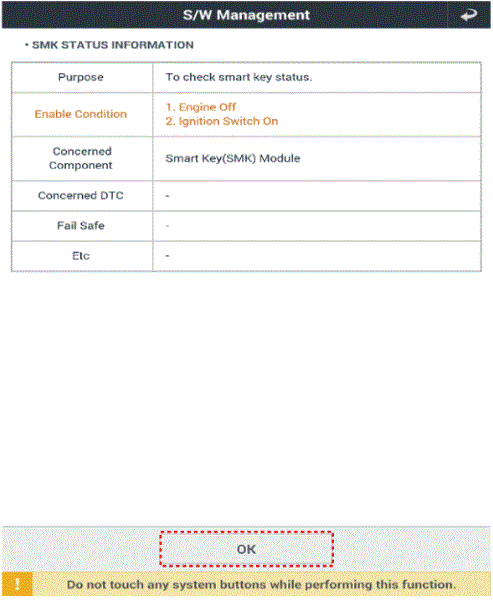

G15717154Courtesy of KIA MOTORS AMERICA, INC.

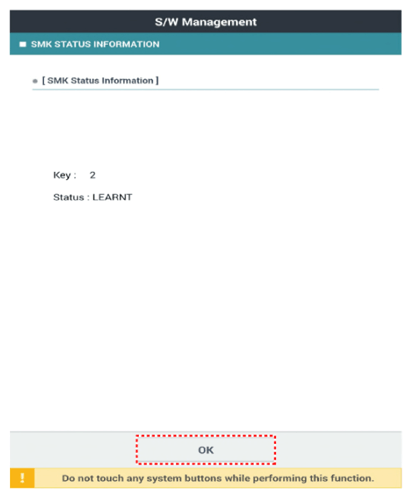

G15717155Courtesy of KIA MOTORS AMERICA, INC.
