Liftgate Lid Handle

  1. Remove the liftgate lid trim.

    (Refer to Body - "TAILGATE TRIM ")

  2. Check for continuity between the terminals.

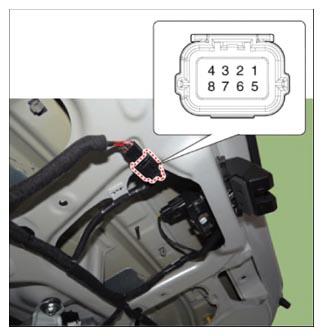

G15717126Courtesy of KIA MOTORS AMERICA, INC.

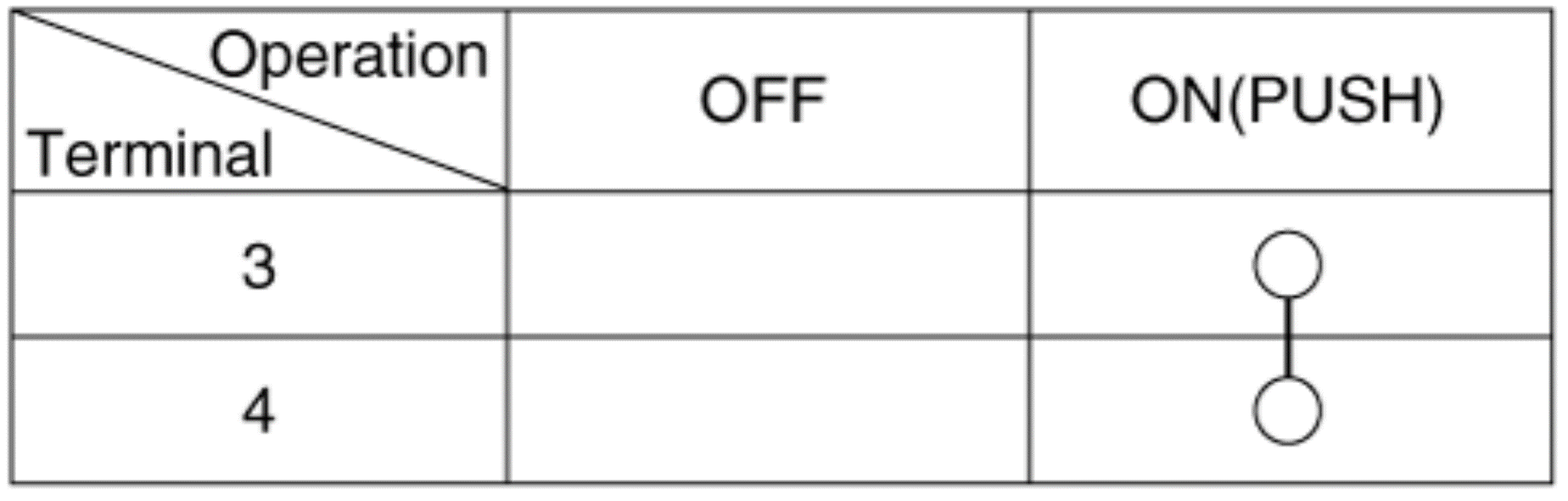

G15717127Courtesy of KIA MOTORS AMERICA, INC.
