Repair Procedures: Removal: Buzzer

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper assembly.

   (Refer to Body - "FRONT BUMPER ASSEMBLY ")

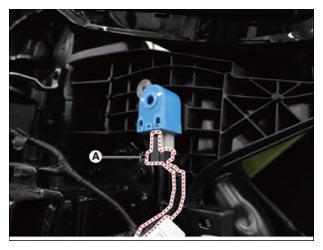

3. Disconnect the buzzer connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

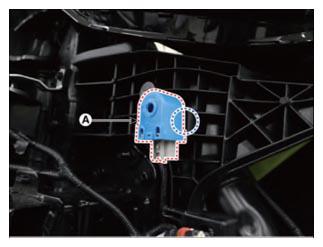

4. Remove the buzzer (A).

Courtesy of KIA MOTORS AMERICA, INC.
