Repair Procedures: Replacement: Bulb

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

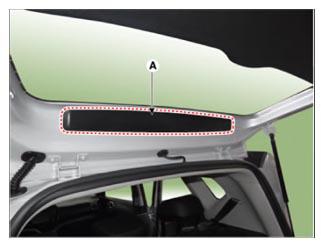

  1. Remove the high mounted stop lamp cover (A).
    G15716926Courtesy of KIA MOTORS AMERICA, INC.
  2. Pull out the bulb-socket (A) from the high mounted stop lamp assembly using the driver.
    G15716927Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the bulb by pulling it out from the socket.
G15716928Courtesy of KIA MOTORS AMERICA, INC.
