Repair Procedures: Replacement
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the heater and blower assembly.
(Refer to Heater - "HEATER UNIT ")

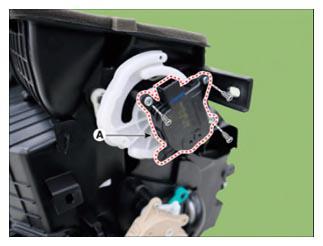

- Remove the mode control actuator (A) after loosening the mounting screws.
- Install in reverse order of removal.
