Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 4

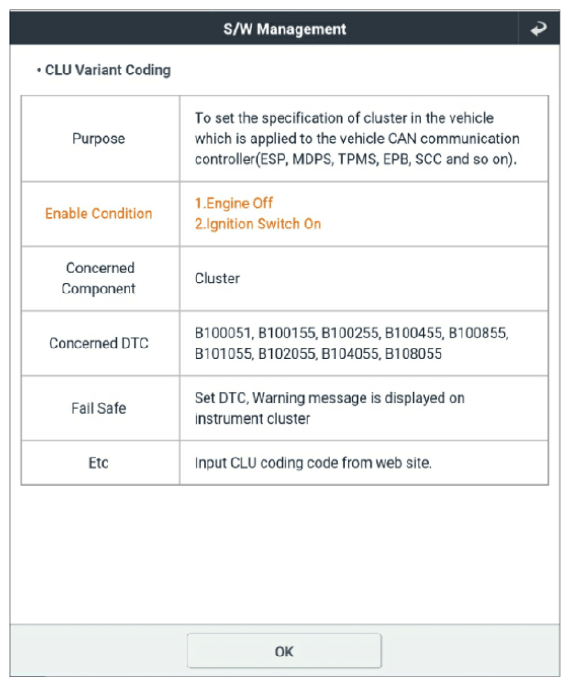

G14971353Courtesy of KIA MOTORS AMERICA, INC.

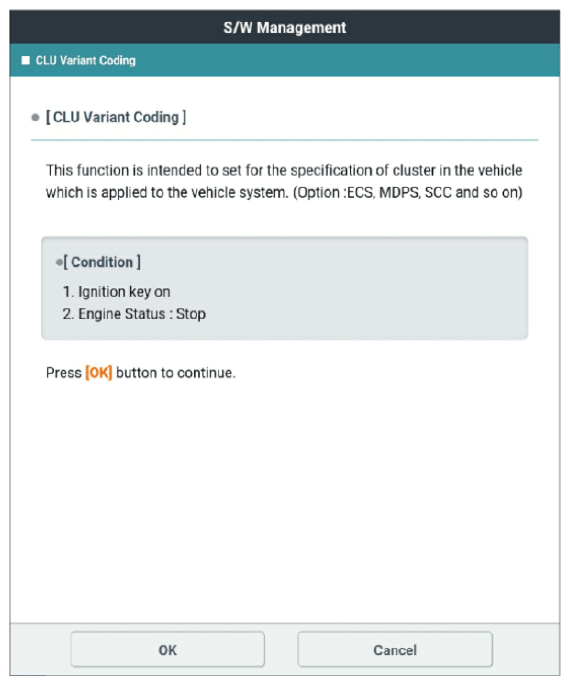

G14971354Courtesy of KIA MOTORS AMERICA, INC.

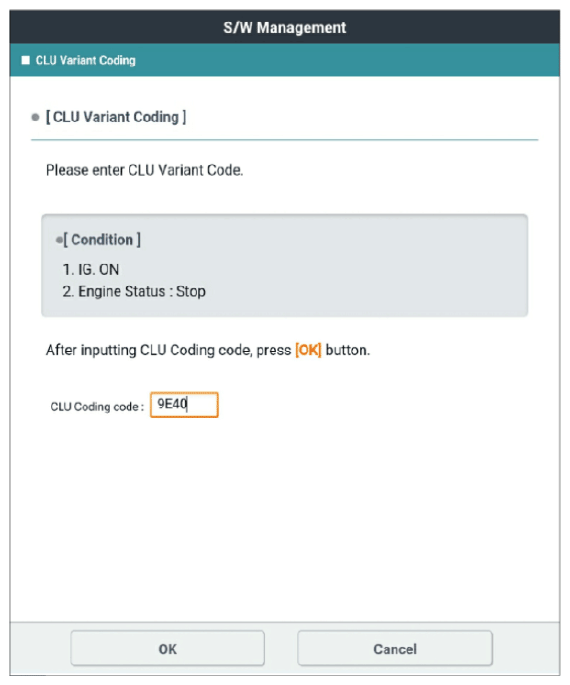

G14971355Courtesy of KIA MOTORS AMERICA, INC.

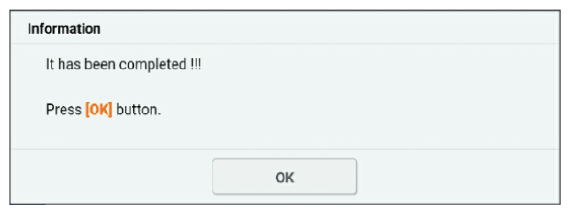

G14971356Courtesy of KIA MOTORS AMERICA, INC.
