Vehicle S/W Management

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

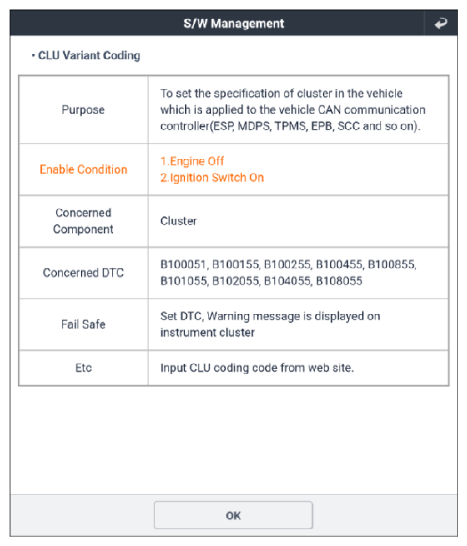

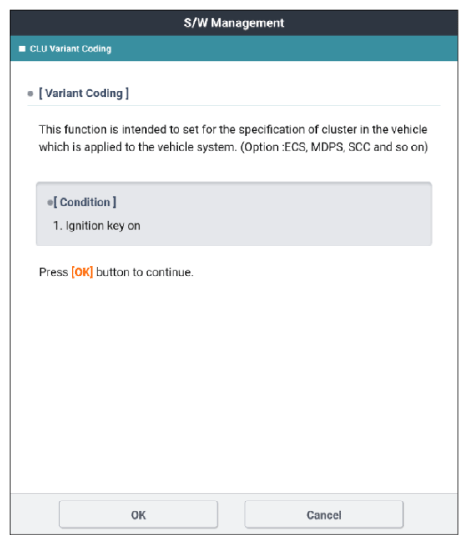

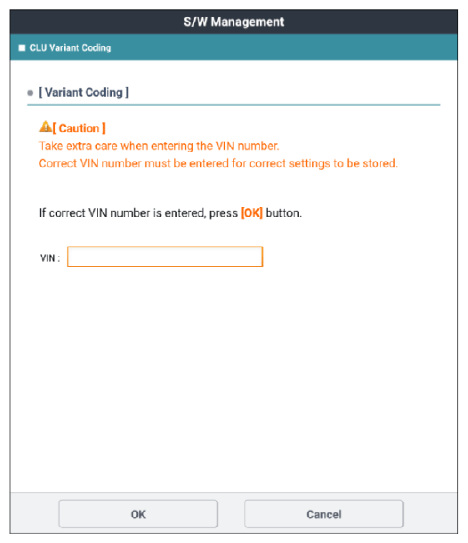

 Fig.1 to 5
G15719246Courtesy of KIA MOTORS AMERICA, INC.
G15719247Courtesy of KIA MOTORS AMERICA, INC.
G15719248Courtesy of KIA MOTORS AMERICA, INC.
G15719249Courtesy of KIA MOTORS AMERICA, INC.
G15719250Courtesy of KIA MOTORS AMERICA, INC.
