Removal & Installation: Removal: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

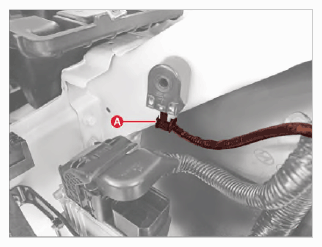

  2. Disconnect the buzzer connector (A).
    G15710404Courtesy of KIA MOTORS AMERICA, INC.

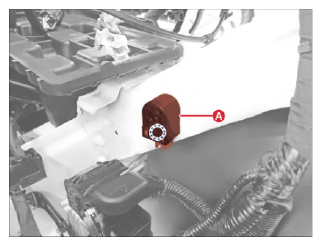

  3. Remove the buzzer (A).
    G15710405Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

G15344698Courtesy of KIA MOTORS AMERICA, INC.
