Components & Components Location: Component

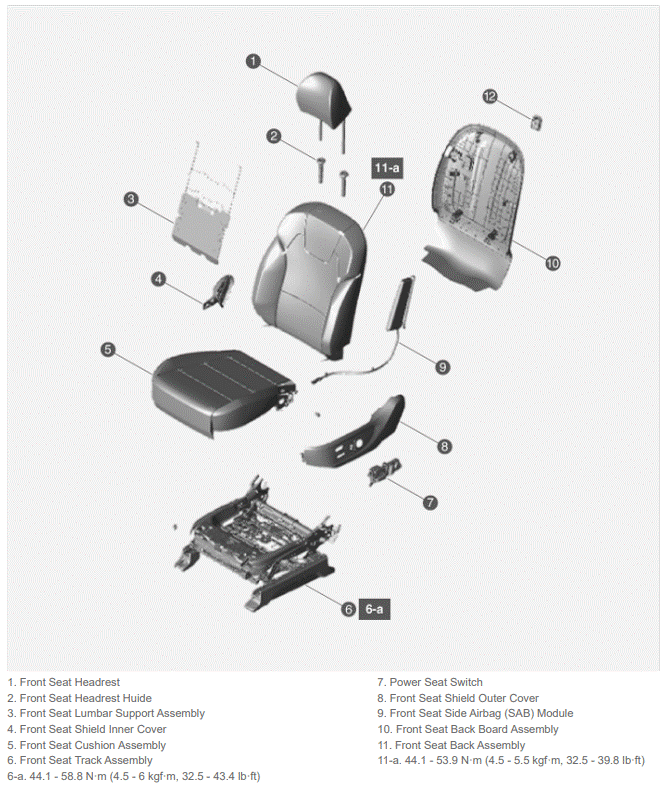

Fig 1: Front Seat Components Location With Torque Specification
G15709921Courtesy of KIA MOTORS AMERICA, INC.
