Rear Wheel Speed Sensor Cap

  1. Remove the rear wheel hub bearing assembly.

    (Refer to Driveshaft and axle - "REAR AXLE ASSEMBLY ")

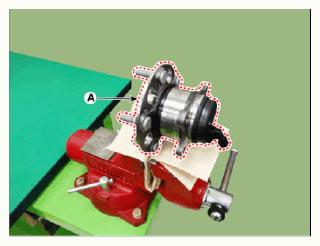

  2. Fix the rear hub bearing assembly (A) on the vise.
    G15709482Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When fixing on the vise, use a cloth not to be damaged the hub bearing assembly.
    • Be careful if excessive force for fixing on the vise may damage the hub bearing assembly.

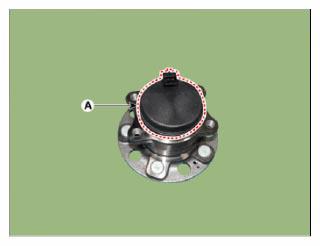

  3. Check the direction of the sensor cap (A).
    G15709483Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Before removing the sensor cap, check the direction of the sensor cap connector.
    G15709484Courtesy of KIA MOTORS AMERICA, INC.

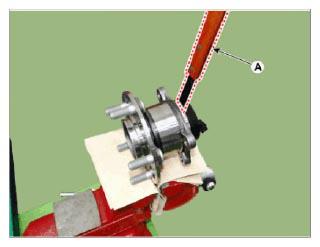

  4. Remove the sensor cap by hammering on a gap between sensor cap and hub bearing assembly using a scraper (A).
    G15709485Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

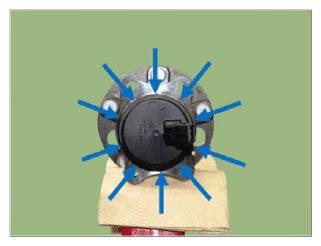

    • In order to widen the gap little by little, hammering around the bearing cap 10-20 times.
      G15709486Courtesy of KIA MOTORS AMERICA, INC.

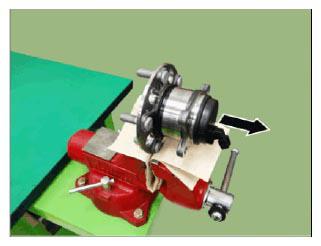

    • When removing the sensor cap, remove it in a straight direction not to damage the tone wheel or encoder.
      G15709487Courtesy of KIA MOTORS AMERICA, INC.
    • Be careful not to damage the hub bearing assembly when using the hammer.

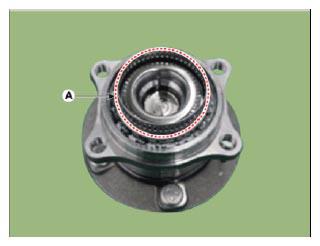

  5. Check if distorted or damaged the tone wheel or encoder (A).
    G15709488Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

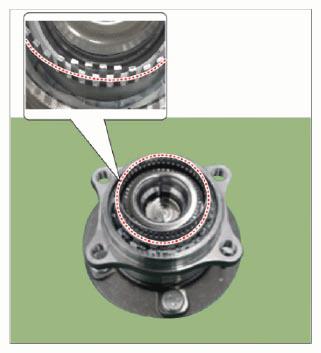

    • Check if damaged the tone wheel or encoder after removing the sensor cap and replace the hub bearing if it was deformed.
    • If the tone wheel is deformed, it may arise MIL ON or other problems.
    G15709489Courtesy of KIA MOTORS AMERICA, INC.

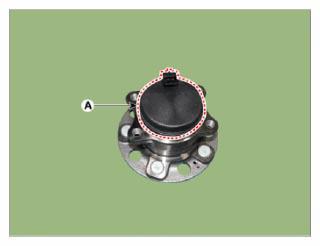

  6. Position the sensor cap to the same direction of sensor cap connector (A) as you checked before removing.
    G15709490Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Before installing the sensor cap, do not let any foreign material and contaminant into the hub bearing assembly.

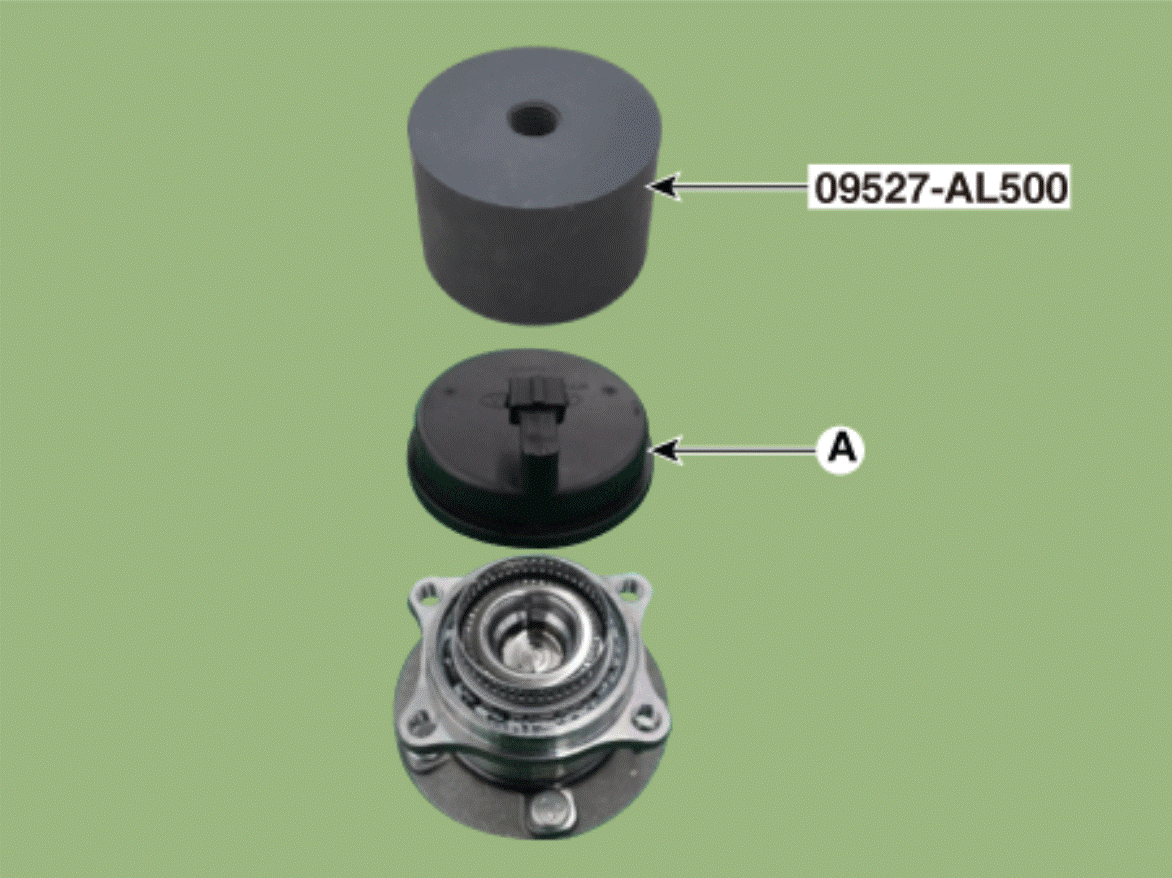

  7. Install the sensor cap (A) with the special service tool (09527-AL500).
    G15709491Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to tilt to one side when installing the sensor cap as it may damage the tone wheel or encoder.

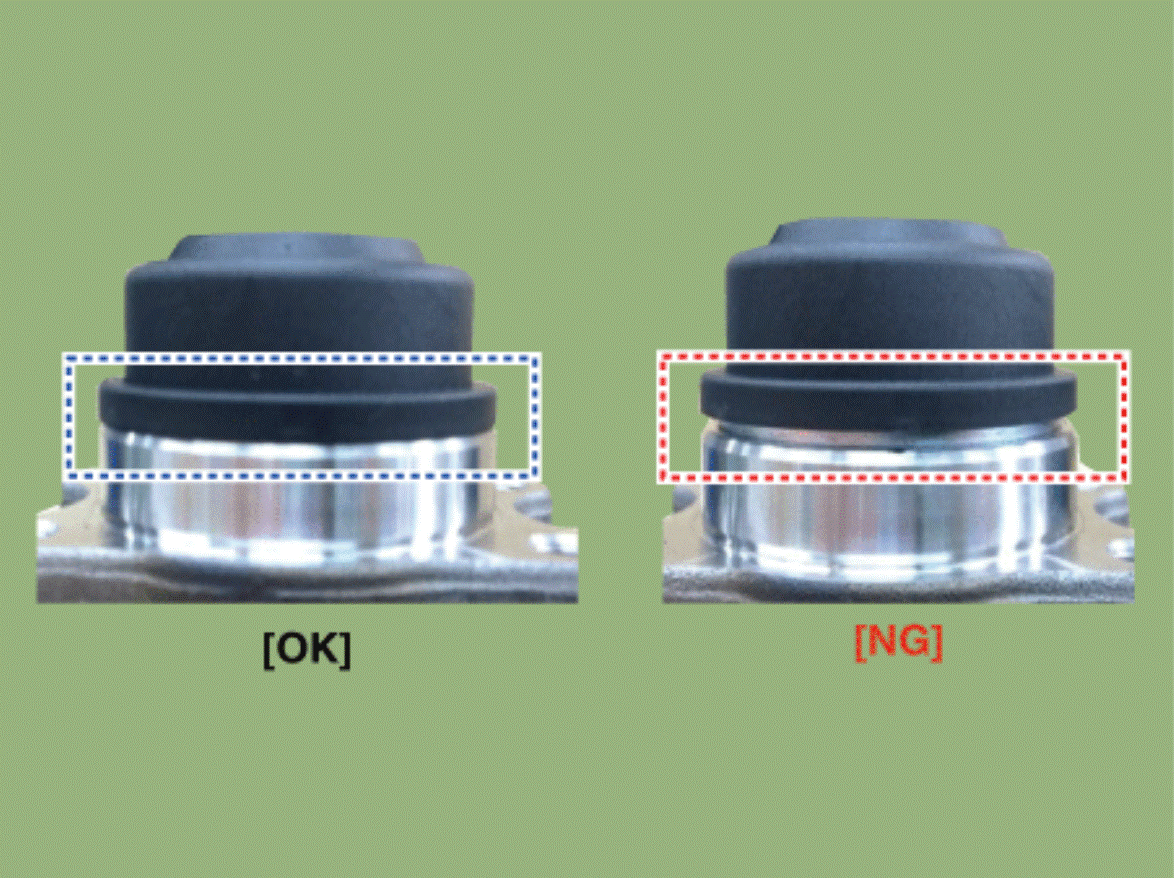

    • When sensor cap installation, hammering it until the gap disappeared between the sensor cap and hub bearing assembly.
      G15709492Courtesy of KIA MOTORS AMERICA, INC.
    • Special Service Tools guide.
    SST No. SST Inner diameter Sensor cap outer diameter
    09527-2W110 (82).1 (81).2, (81).4
    09527-1S010 (58).9 (58).4
    09527-AL100 (60) (59).5
    09527-AL200 (65).9 (65).3
    09527-AL300 (67).4 (67).2
    09527-AL400 (73).2 (72).6
    09527-AL500 (87).2 (86).6
  8. Install the rear wheel hub bearing assembly.

    (Refer to Driveshaft and axle - "REAR AXLE ASSEMBLY ")
