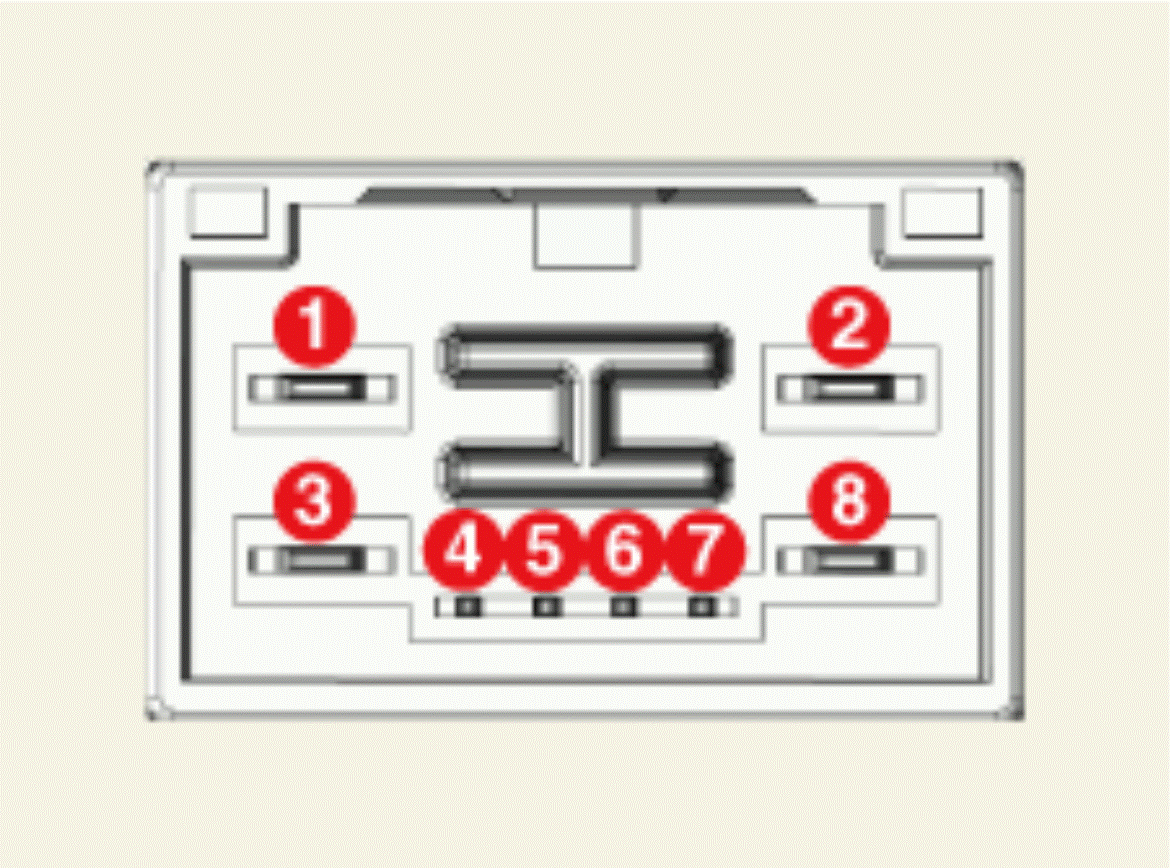

Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

No	Function
1	Battery +
2	AC Power 1
3	Ground
4	IGN 2
5	AC Indicator
6	AC Switch in rear console
7	AC Switch in luggage trim
8	AC Power 2
