Component Inspection

Disconnect battery negative (-) terminal.
Disconnect the Fuel Pump Control Module (FPCM) connector.

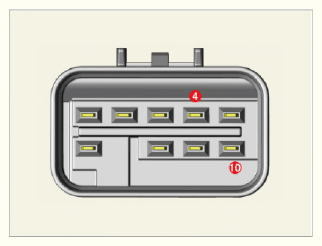

Check fuel pump operation by connecting power to terminal 10 (+) and ground to terminal 4 (-) of connector.

G15693486

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
4	(-)
10	(+)
