Removal & Installation: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.

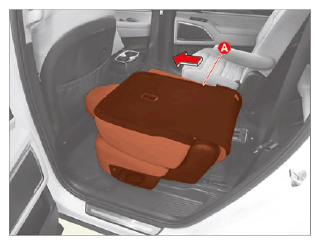

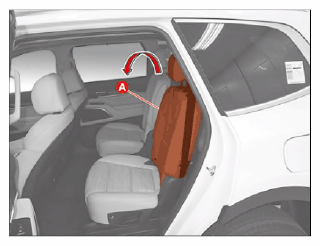

Fold the rear seat back assembly (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.
Move the rear seat assembly (A) forward as far as possible in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

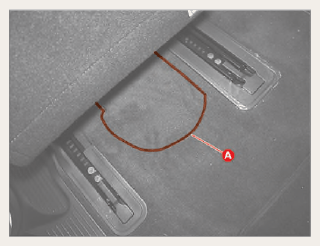

Cut the cover along the line (A).

Courtesy of KIA MOTORS AMERICA, INC.

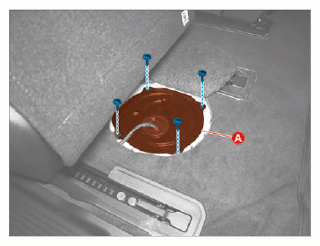

Remove the fuel pump service cover (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

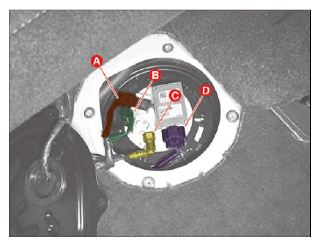

Separate and disconnect the connectors.

Fuel Pump Control Module (FPCM) connector

Courtesy of KIA MOTORS AMERICA, INC.

Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the propeller shaft assembly.[4WD]
(Refer to Drivershaft and axle - "PROPELLER SHAFT ASSEMBLY ")

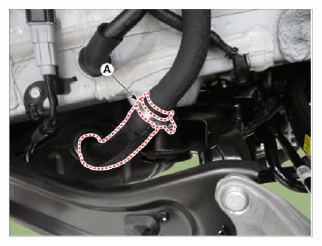

Separate the fuel filler hose (A).
Tightening Torque:

3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft, 34.7 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

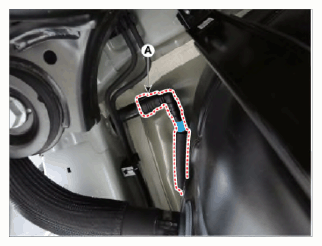

Separate the ventilation tube quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

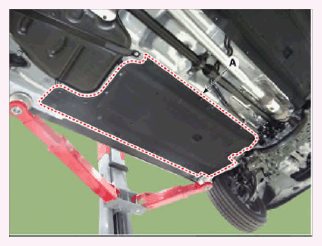

Remove the side under cover (A).
Tightening Torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

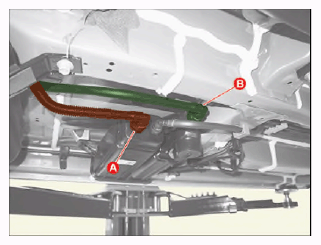

Separate the ventilation hose (A) and vapor hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

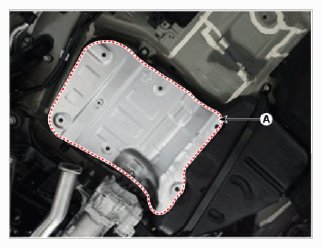

Remove the fuel tank protector (A).
Tightening Torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

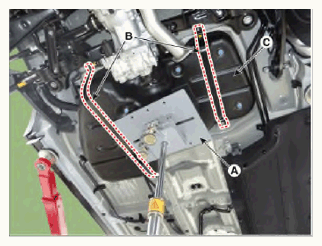

Support the fuel tank on a jack (A).

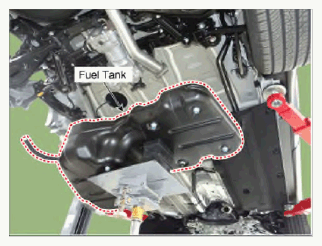

Remove the fuel tank (C) after removing the fuel tank band (B) and bolts.
Tightening Torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
