Removal & Installation: Installation

  1. Install the wheel and tire (A).

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

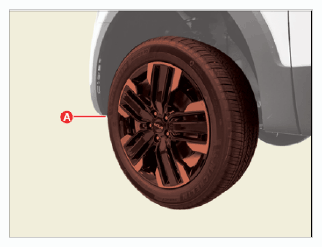

    [Front]

    G15709086Courtesy of KIA MOTORS AMERICA, INC.

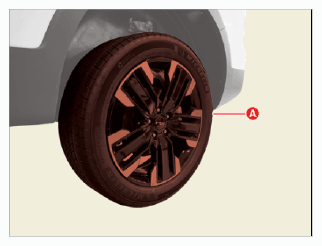

    [Rear]

    G15709087Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage the hub bolts (A) when installing the wheel and tires.

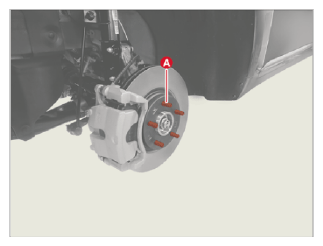

      [Front]

      G15709088Courtesy of KIA MOTORS AMERICA, INC.

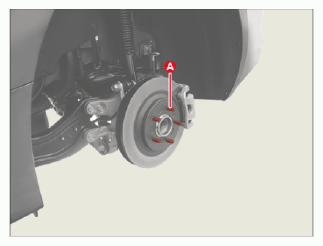

      [Rear]

      G15709089Courtesy of KIA MOTORS AMERICA, INC.
    • Tighten the hub nuts as follows.

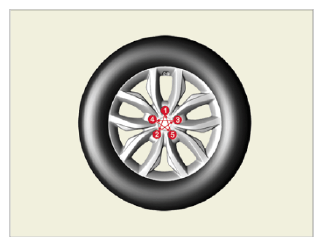

      Fig 1: Hub Nuts Tightening Sequence
      G15709090Courtesy of KIA MOTORS AMERICA, INC.

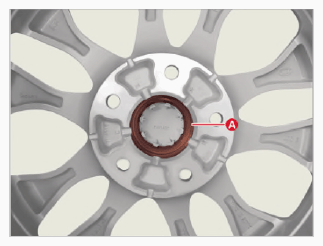

    • Remove rust or debris from the contact surface of the wheel side (A) and the hub side (B) and install the wheels and tires.
      G15709091Courtesy of KIA MOTORS AMERICA, INC.

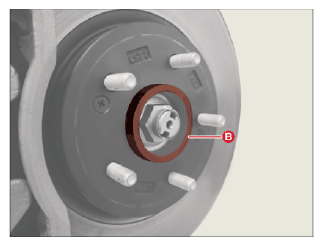

      [Front]

      G15709092Courtesy of KIA MOTORS AMERICA, INC.

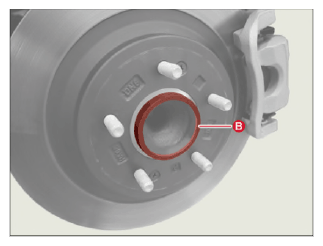

      [Rear]

      G15709093Courtesy of KIA MOTORS AMERICA, INC.
