Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

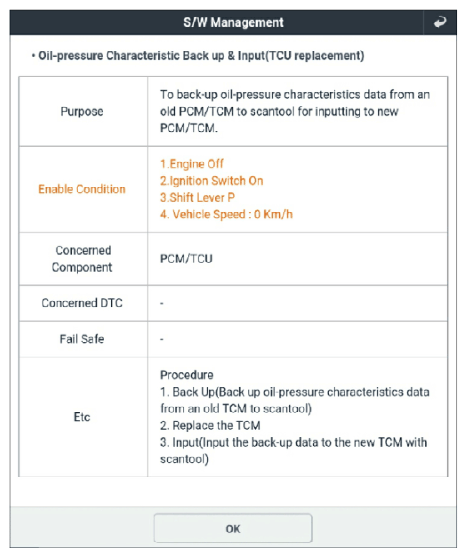

G15727570Courtesy of KIA MOTORS AMERICA, INC.

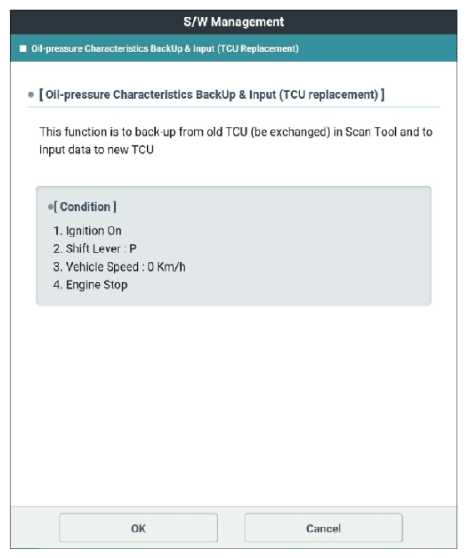

G15727571Courtesy of KIA MOTORS AMERICA, INC.

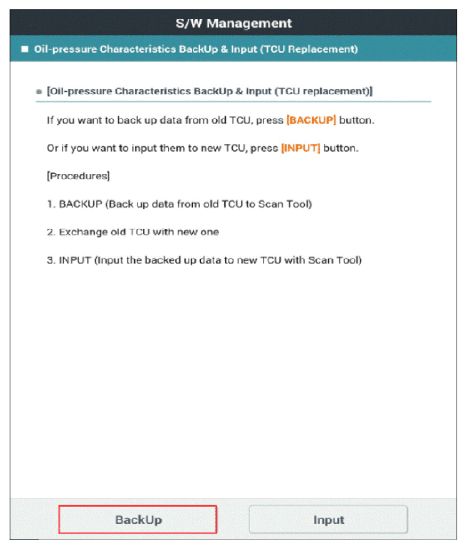

G15727572Courtesy of KIA MOTORS AMERICA, INC.

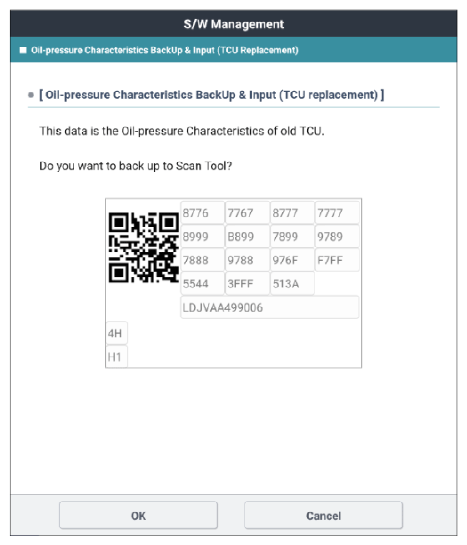

G15727573Courtesy of KIA MOTORS AMERICA, INC.

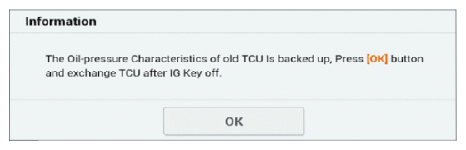

G15727574Courtesy of KIA MOTORS AMERICA, INC.

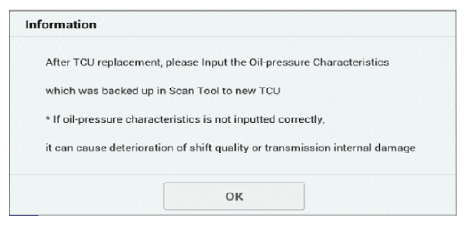

G15727575Courtesy of KIA MOTORS AMERICA, INC.

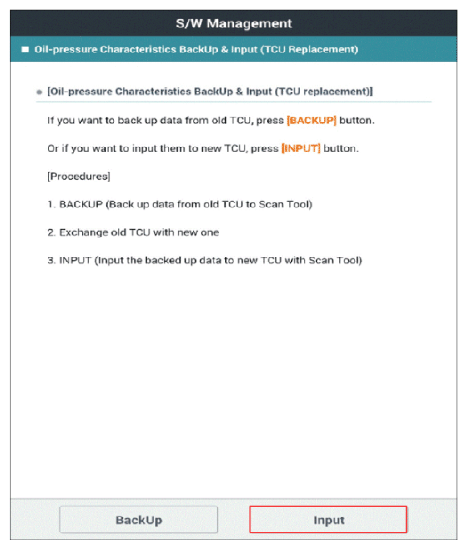

G15727576Courtesy of KIA MOTORS AMERICA, INC.

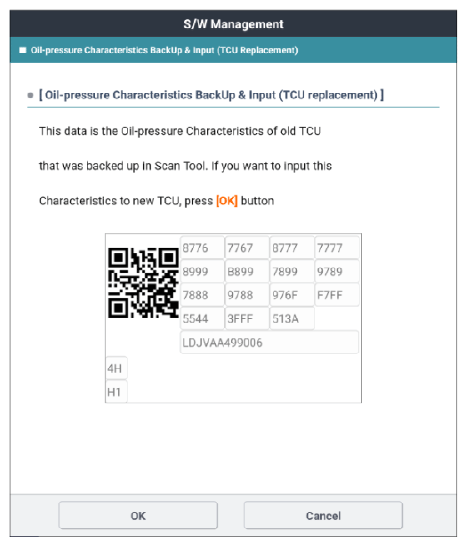

G15727577Courtesy of KIA MOTORS AMERICA, INC.

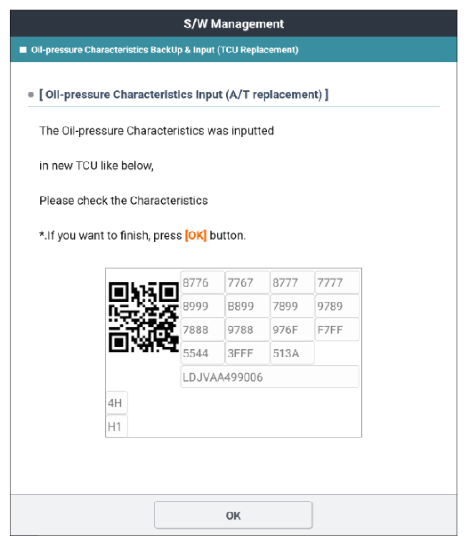

G15727578Courtesy of KIA MOTORS AMERICA, INC.
