Circuit Inspection: Notes

G15727942

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

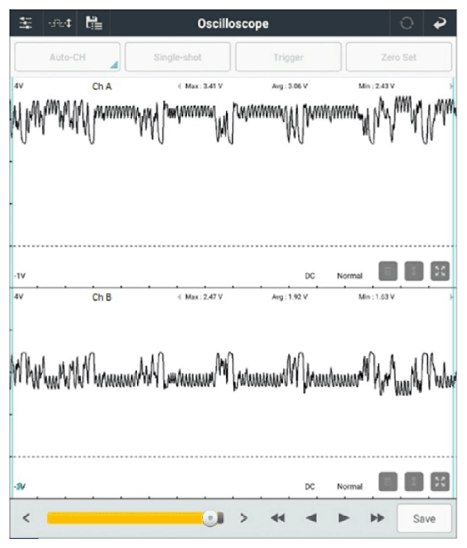

Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Electric oil pump unit connector	5 (P-CAN high)	Chassis ground	-	Fig.1
	Electric oil pump unit connector	4 (P-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Electric oil pump unit connector	5 (P-CAN high)	Electric oil pump unit connector	4 (P-CAN low)	Approx. 60Ω
	ECM (component side)	77 (P-CAN high)	ECM (component side)	60 (P-CAN low)	Approx. 120Ω
	ICU (component side)	22 (P-CAN high)	ICU (component side)	23 (P-CAN low)	Approx. 120Ω

G15727943

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "MODULE CIRCUIT INSPECTION " procedure.
Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
