Safety Power Window Motor

Courtesy of KIA MOTORS AMERICA, INC.

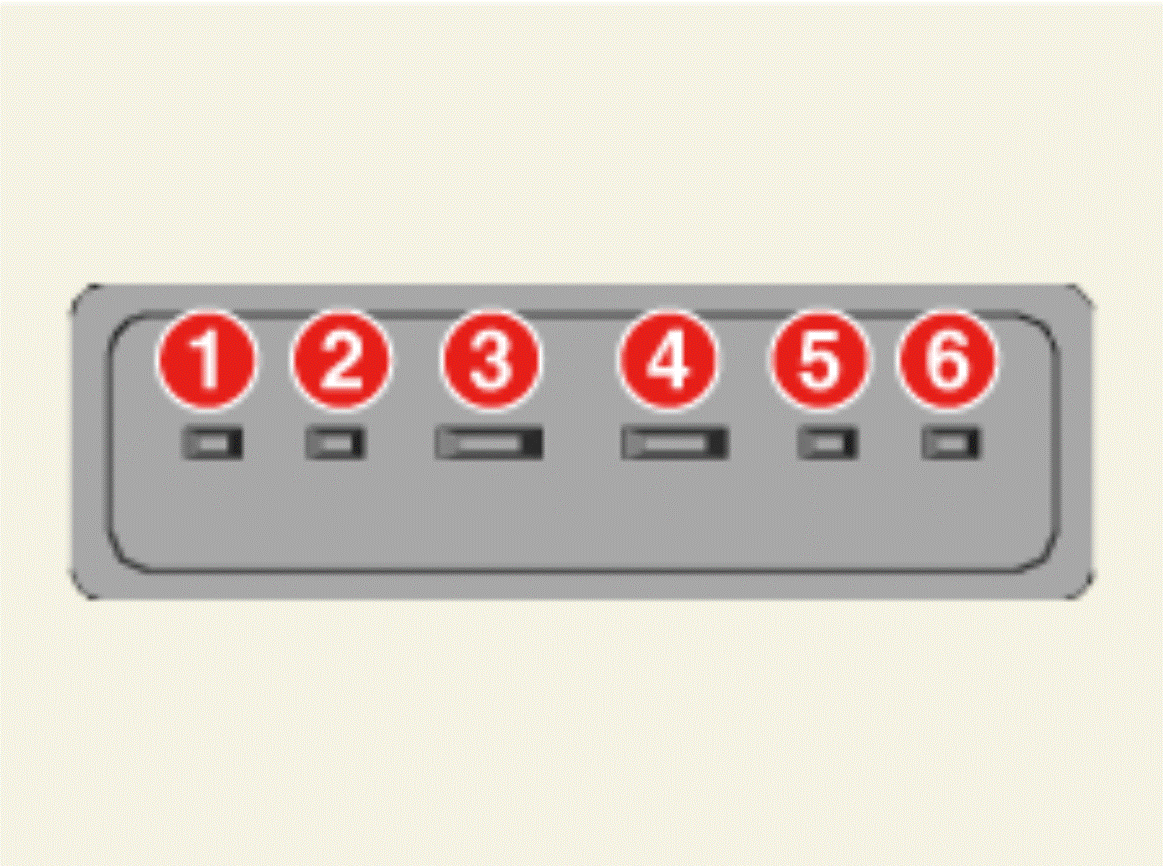

Pin	Driver	Pin	Passenger, Rear
1	-	1	Power window switch
2	Not used	2	Not used
3	Fuse - P/WINDOW LH	3	Fuse - P/WINDOW RH
4	Ground	4	Ground
5	LIN	5	LIN
6	-	6	-
