Timing Chain: Removal

Remove the RH and LH cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

Place the piston of No. 1 cylinder at the compression TDC.

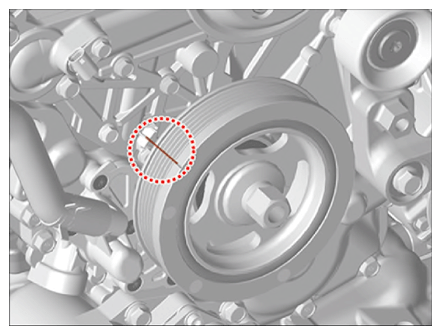

Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.

G14796929

Courtesy of KIA MOTORS AMERICA, INC.

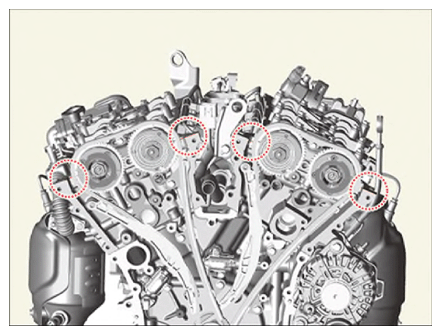

Rotate the camshaft so that the timing mark on the camshaft sprocket is in line with the top of the cylinder head to place the No. 1 cylinder at the TDC.

G14796930

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not rotate engine counterclockwise.

Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Remove the oil pump chain tensioner (A).

Courtesy of KIA MOTORS AMERICA, INC.

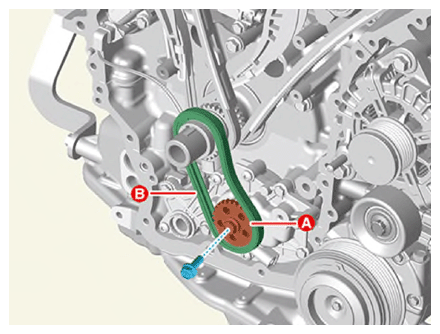

Remove the oil pump sprocket (A) and oil pump chain (B).

Courtesy of KIA MOTORS AMERICA, INC.

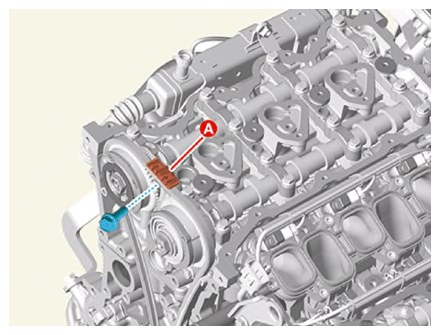

Remove the RH timing chain cam to cam guide (A).

Courtesy of KIA MOTORS AMERICA, INC.

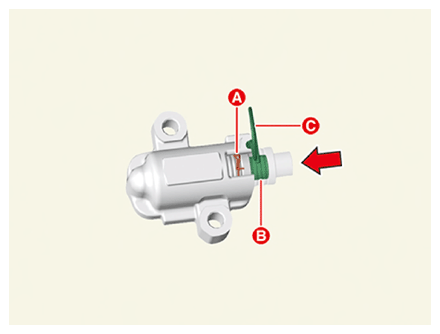

Grab the ratchet clamp (A) and compress the timing chain tensioner in the direction of (B), then install the retaining pin (C).

Courtesy of KIA MOTORS AMERICA, INC.

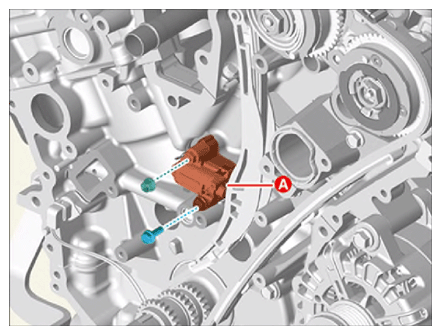

Remove the RH timing chain tensioner (A).

Courtesy of KIA MOTORS AMERICA, INC.

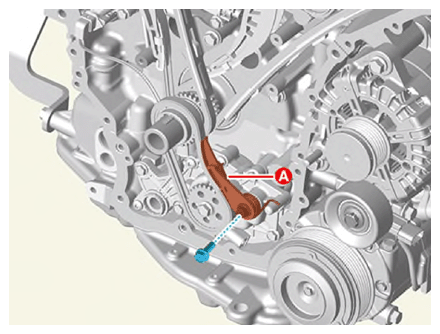

Remove the RH timing chain tensioner arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

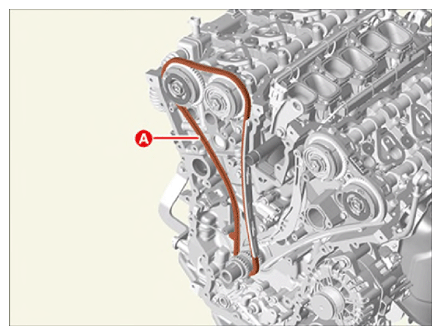

Remove the RH timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.

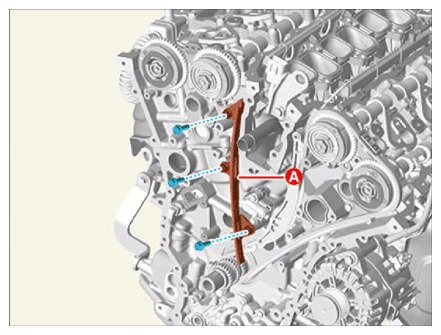

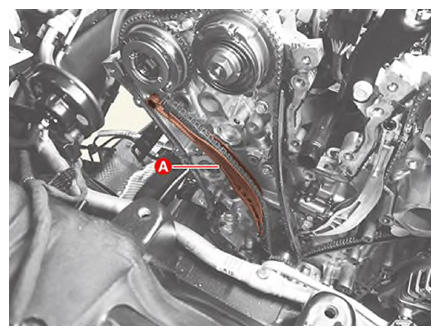

Remove the timing chain guide (A).

Courtesy of KIA MOTORS AMERICA, INC.

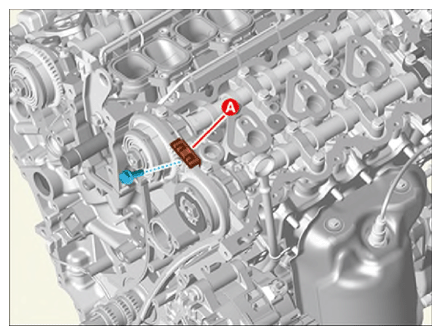

Remove the LH timing chain to cam guide (A).

Courtesy of KIA MOTORS AMERICA, INC.

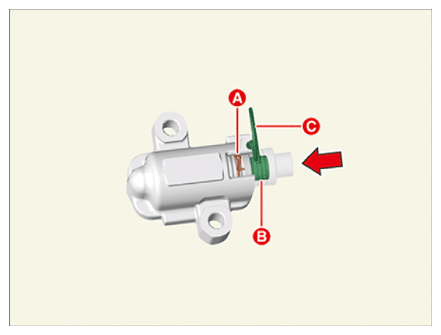

Grab the ratchet clamp (A) and compress the timing chain tensioner in the direction of (B), then install the retaining pin (C).

Courtesy of KIA MOTORS AMERICA, INC.

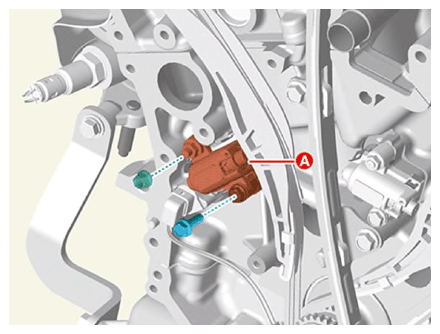

Remove the LH timing chain tensioner (A) with adapter.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH timing chain tensioner arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

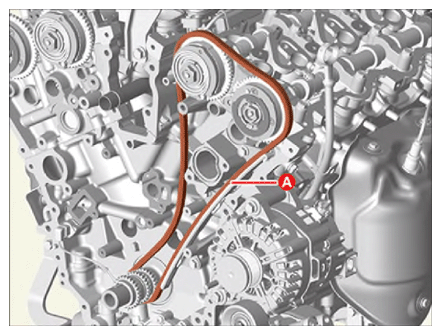

Remove the LH timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.

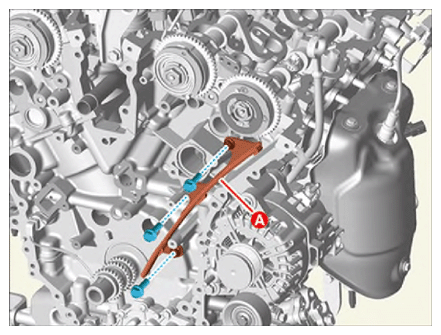

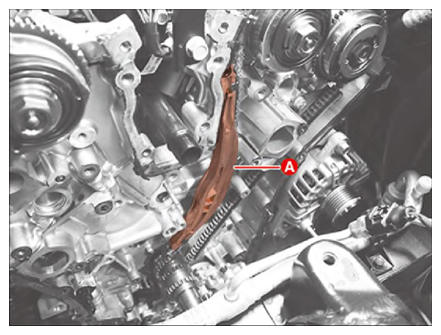

Remove the LH timing chain guide (A).

G14796944
