Circuit Inspection

G14807744

Courtesy of KIA MOTORS AMERICA, INC.

G14807745

Courtesy of KIA MOTORS AMERICA, INC.

C-CAN Communication Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	C-MDPS unit connector	7 (C-CAN high)	Chassis ground	-	Fig. 1
Ignition "ON".	C-MDPS unit connector	8 (C-CAN low)	Chassis ground	-	Fig. 1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) of all concerned component to the related CAN system.	C-MDPS unit connector	7 (C-CAN high)	Chassis ground	-	∞ (infinity)Ω
	C-MDPS unit connector	8 (C-CAN low)	Chassis ground	-	∞ (infinity)Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	C-MDPS unit connector	7 (C-CAN high)	ICU connector	20 (C-CAN high)	Approx. below 1Ω
	C-MDPS unit connector	8 (C-CAN low)	ICU connector	19 (C-CAN low)	Approx. below 1Ω
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU (component side)	20 (C-CAN high)	ICU (component side)	19 (C-CAN low)	Approx. 120Ω
	SRSCM (component side)	27 (C-CAN high)	SRSCM unit (component side)	26 (C-CAN low)	Approx. 120Ω

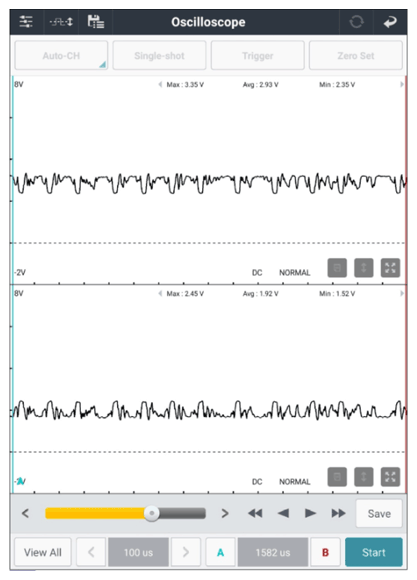

G14807746

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "P-CAN Communication Circuit Inspection" procedure.

No Good

Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.

P-CAN Communication Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ICU connector	17 (P-CAN high)	ECM	56 (P-CAN high)	Approx. below 1Ω
	ICU connector	18 (P-CAN low)	ECM	57 (P-CAN low)	Approx. below 1Ω
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) of all concerned component to the related CAN system.	PCM connector	56 (P-CAN high)	Chassis ground	-	∞ (infinity)Ω
	PCM connector	57 (P-CAN low)	Chassis ground	-	∞ (infinity)Ω
Ignition "ON".	PCM connector	56 (P-CAN high)	Chassis ground	-	Fig. 2
Ignition "ON".	PCM connector	57 (P-CAN low)	Chassis ground	-	Fig. 2
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU (component side)	17 (P-CAN high)	ICU (component side)	18 (P-CAN low)	Approx. 120Ω
	ECM (component side)	56 (P-CAN high)	ECM (component side)	57 (P-CAN low)	Approx. 120Ω

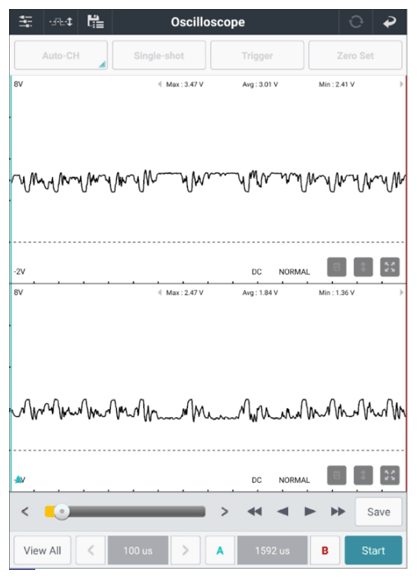

G14807747

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Module Circuit Inspection" procedure.

No Good

Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.

Module Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	C-MDPS unit connector	1 (Memory power)	Chassis ground	-	B+
	C-MDPS unit connector	2 (ground)	Chassis ground	-	Approx. below 1Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	C-MDPS unit connector	1 (ON/START Input)	Chassis ground	-	B+

Good

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
If no problems were found with the circuits or connectors, replace the C-MDPS unit and Go to "VERIFICATION OF REPAIR " procedure.
