Circuit Inspection
| P-CAN Communication Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
IBU connector | 35 (P-CAN high) | ECM | 56 (P-CAN high) | Approx. below 1Ω |
| IBU connector | 36 (P-CAN low) | ECM | 57 (P-CAN low) | Approx. below 1Ω | |
|
IBU connector | 35 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| IBU connector | 36 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
|

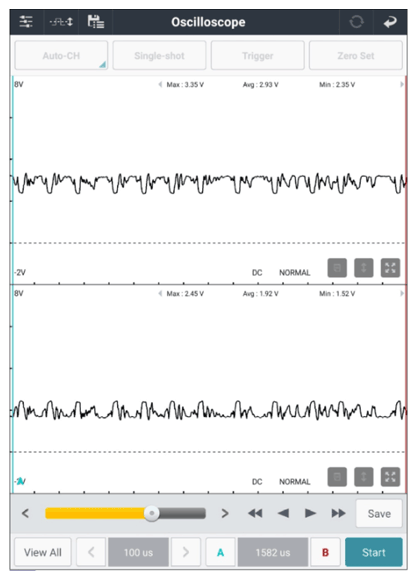

ECM | 56 (P-CAN high) | Chassis ground | - | Fig. 1 |
| ECM | 57 (P-CAN low) | Chassis ground | - | ||
|
ICU (component side) | 17 (P-CAN high) | ICU (component side) | 18 (P-CAN low) | Approx. 120Ω |
| ECM (component side) | 56 (P-CAN high) | ECM (component side) | 57 (P-CAN low) | Approx. 120Ω | |
Good
- Go to "Module Circuit Inspection" procedure.
No Good
- Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
IBU connector | 4, 11 (Memory power) | Chassis ground | - | B+ |
| IBU connector | 6, 14 (ground) | (Chassis ground) | - | Approx. below 1Ω | |
|
IBU connector | 13 (ACC/ON Input) | Chassis ground | - | B+ |
| IBU connector | 24 (ON/START Input) | Chassis ground | - | B+ | |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
- If no problems were found with the circuits or connectors, replace the IBU and Go to "VERIFICATION OF REPAIR " procedure.
