Connector Connection Condition Test

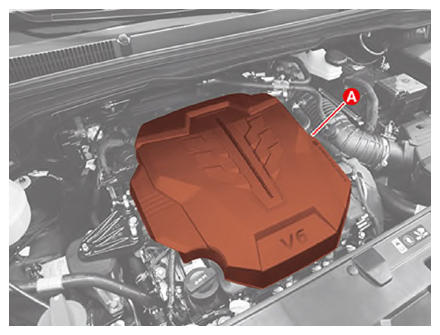

  1. Remove the engine cover (A).
    G14797027Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  3. Connect the ignition coil connector (A) again after disconnecting the ignition coil connector (A).

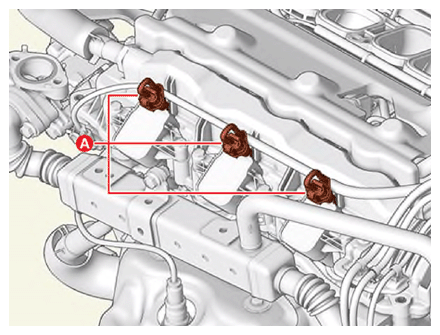

    [Bank 1]

    G14797028Courtesy of KIA MOTORS AMERICA, INC.

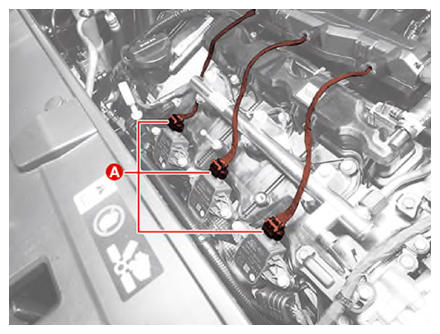

    [Bank 2]

    G14797029Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  5. Install the engine cover (A).
    G14797030Courtesy of KIA MOTORS AMERICA, INC.

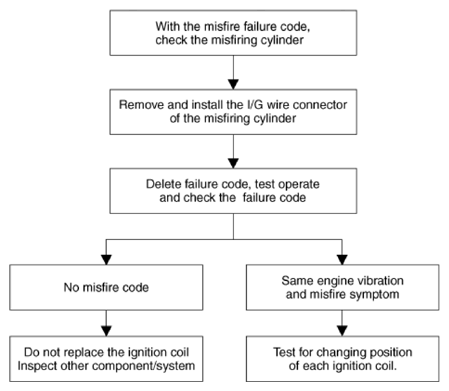

  6. Perform the driving test after deleting the DTC code.
G14797031Courtesy of KIA MOTORS AMERICA, INC.
