Component Location
Component Location

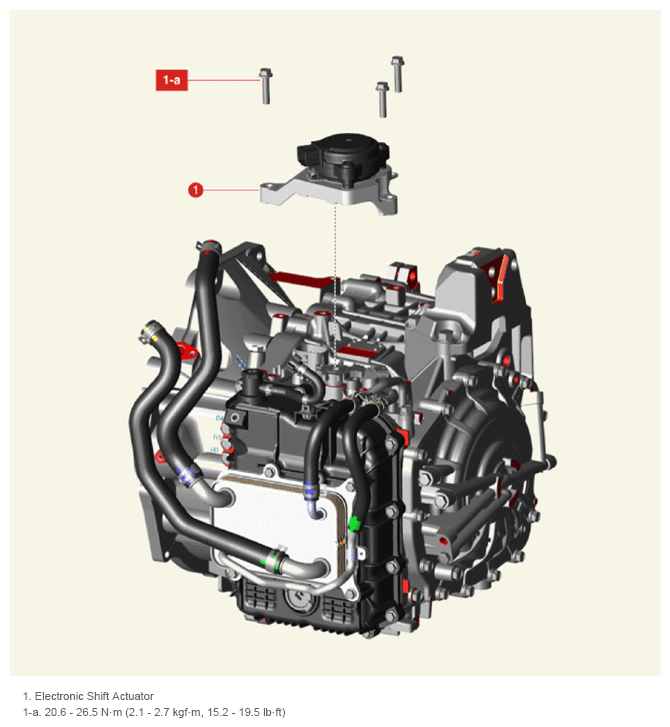

Fig 1: Electronic Shift Actuator Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
