FOB Status Check

  1. Connect the VCI II of KDS to the Data Link Connector (DLC).

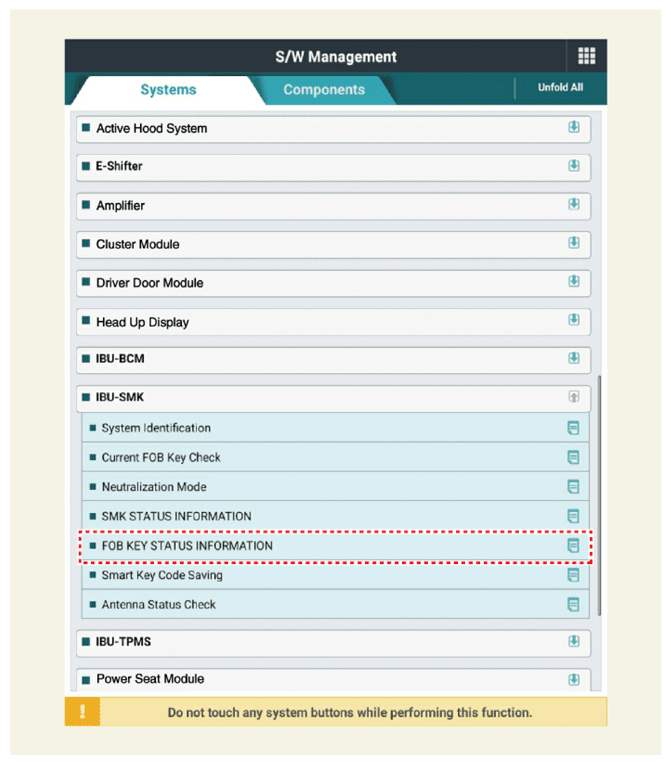

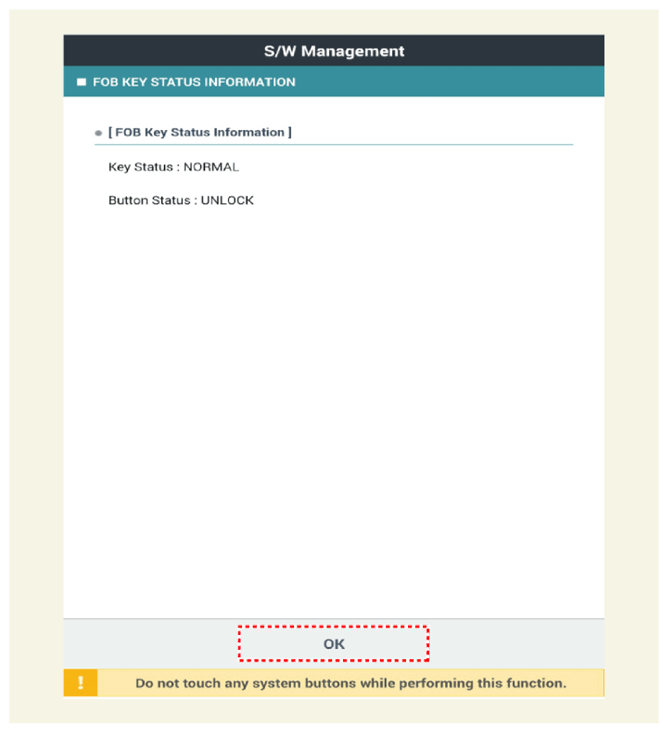

  2. After IG ON, select the "FOB KEY STATUS INFO".
    G14806676Courtesy of KIA MOTORS AMERICA, INC.
    G14806677Courtesy of KIA MOTORS AMERICA, INC.
