Smart Key Unit: Inspection: Buzzer
- Disconnect the battery negative (-) terminal.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

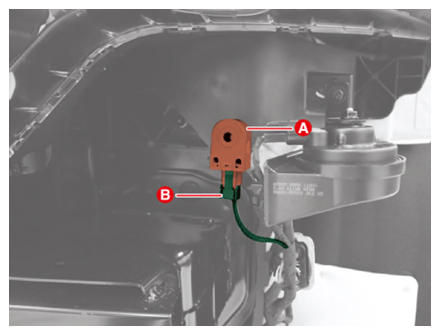

- Disconnect the connector (B) from buzzer (A).
- Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
