Front Door Outside Handle

  1. Remove the front door outside handle.

    (Refer to Body - "FRONT DOOR OUTSIDE HANDLE ")

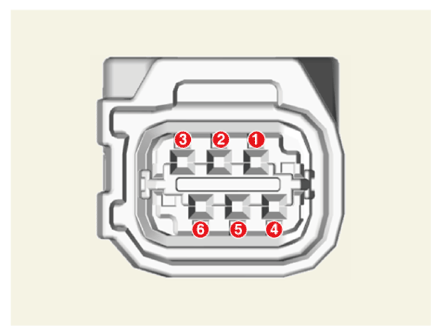

  2. Disconnect the front door outside handle connector and then check for continuity between terminals No 3 and No 6.
    G14806652Courtesy of KIA MOTORS AMERICA, INC.
    Pin Function
    SMK Type
    1 Battery (+) (Pocket lamp)
    2 Antenna 1
    3 Lock/Unlock button
    4 Ground (Pocket lamp)
    5 Antenna 2
    6 Ground (Button)
