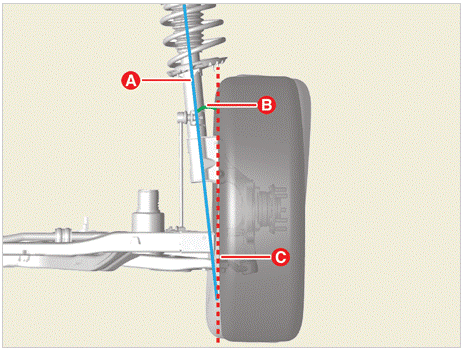

King Pin Angle

Kingpin angle refers to the angle at which the centerline of the steering shaft and the bottom vertical line forms when the vehicle is viewed from the front.

• Provides easy steering of the steering wheel and resilience of the steering wheel.
• The kingpin angle and camber are also called Included Angle (I.A.). [Included Angle (I.A.)]

Courtesy of KIA MOTORS AMERICA, INC.
