Section 5 (Alignment (4WD)): Adjustment: Rear: Notes

WARNING: This page is about a different variant/trim than selected.

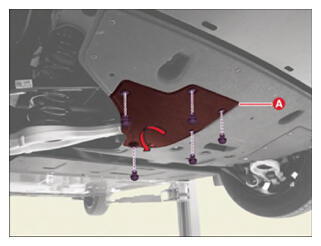

Remove the fasteners, and then separate the service cover (A) in the direction of the arrow to adjust rear alignment.

Courtesy of KIA MOTORS AMERICA, INC.
