Clock Spring

1. Disconnect the battery negative (-) terminal and the service interlock connector.

   (Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD  ")

   (Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD  ")

2. Remove the steering wheel.

   (Refer to Steering System - " STEERING WHEEL REMOVAL AND INSTALLATION  ")

3. Remove the steering column shroud lower panel.

   (Refer to Body - " STEERING COLUMN SHROUD PANEL  ")

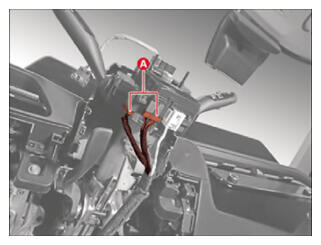

4. Disconnect the clock spring connectors (A).

   Courtesy of KIA MOTORS AMERICA, INC.

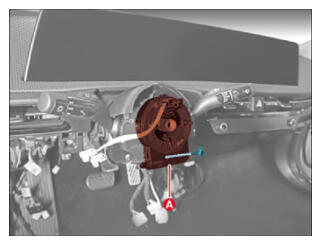

5. Remove the clock spring (A) screw.

   Courtesy of KIA MOTORS AMERICA, INC.

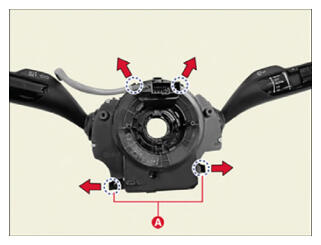

6. Remove the clock spring (A) by releasing the fixing hooks.

Courtesy of KIA MOTORS AMERICA, INC.

Information

IMPORTANT:

Clip position:
