Front Suspension: Alignment: Adjustment: Rear: Toe

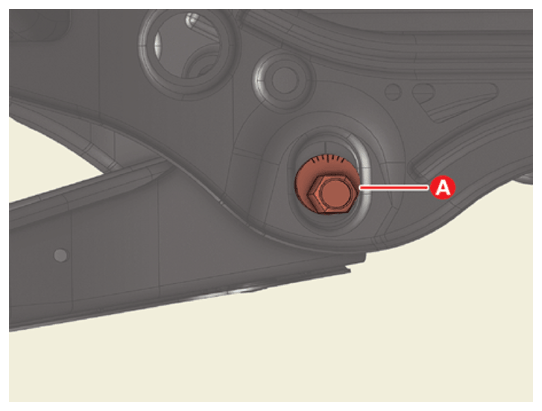

Turn the cam bolt (A) attached to the rear assist arm clockwise or counterclockwise to adjust the toe. Adjust the left and right cam bolts to the same amount
Total: 0.0 ~ 0.4°
Individual: 0.0 ~ 0.2°
| Cam nut | Rotation | Increase/Decrease | Change (°) |
|---|---|---|---|
| RH | Clockwise | Toe in | Toe about 0.44 Camber about 0.06 *Per scale |
| LH | Clockwise | Toe out |
Information
Adjust the toe using total toe.
