Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

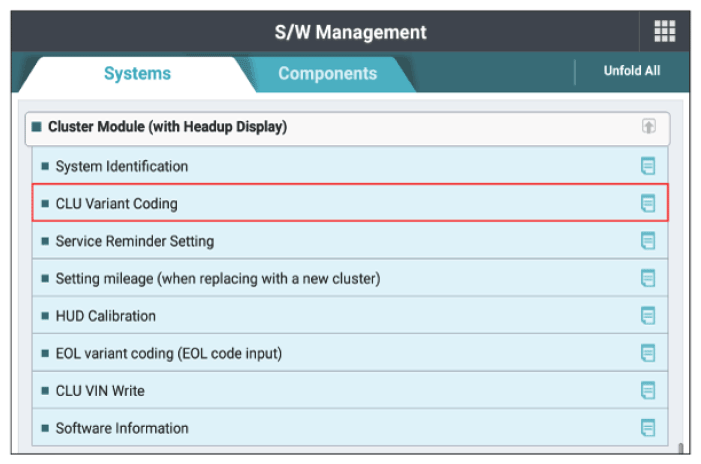

G16884340Courtesy of KIA MOTORS AMERICA, INC.

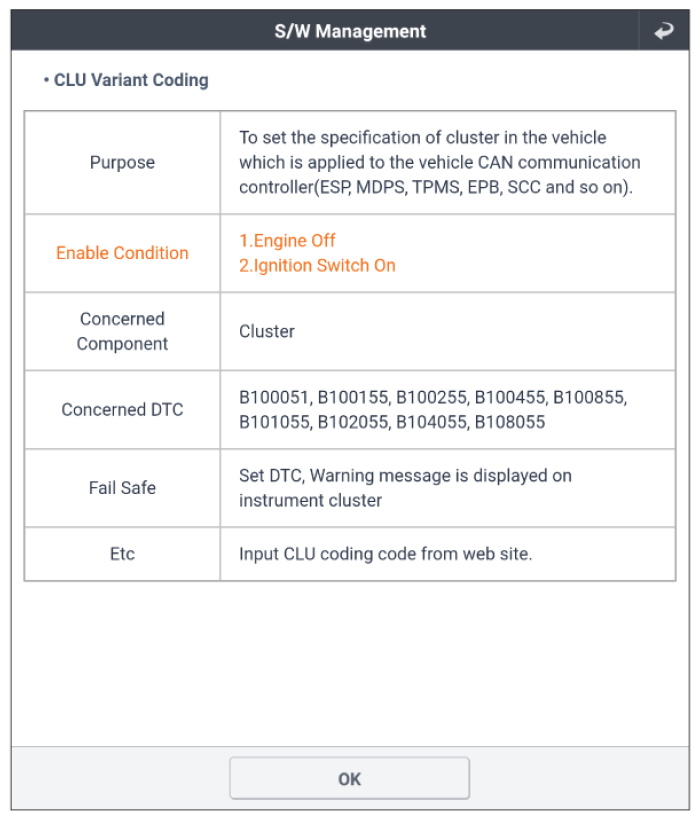

G16884341Courtesy of KIA MOTORS AMERICA, INC.

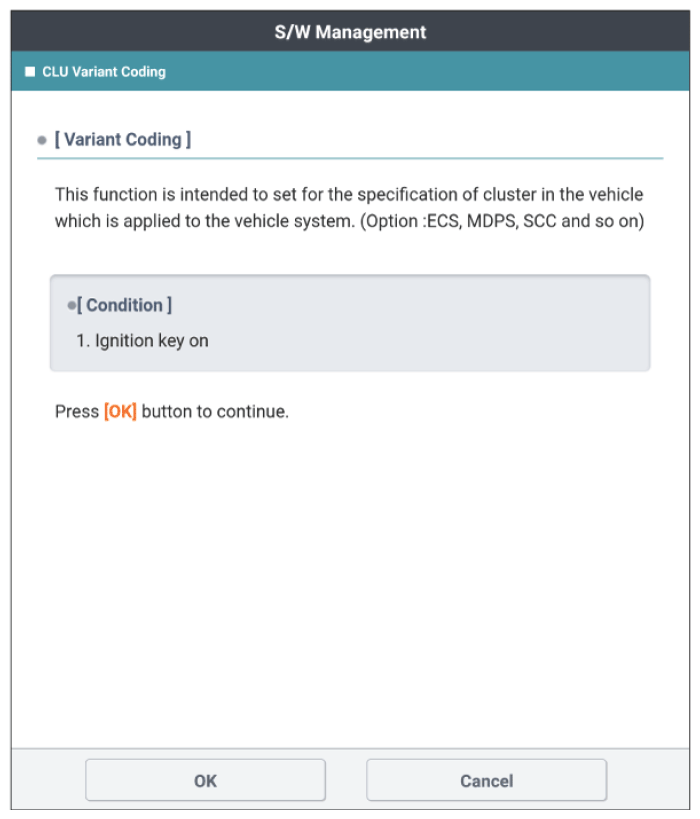

G16884342Courtesy of KIA MOTORS AMERICA, INC.

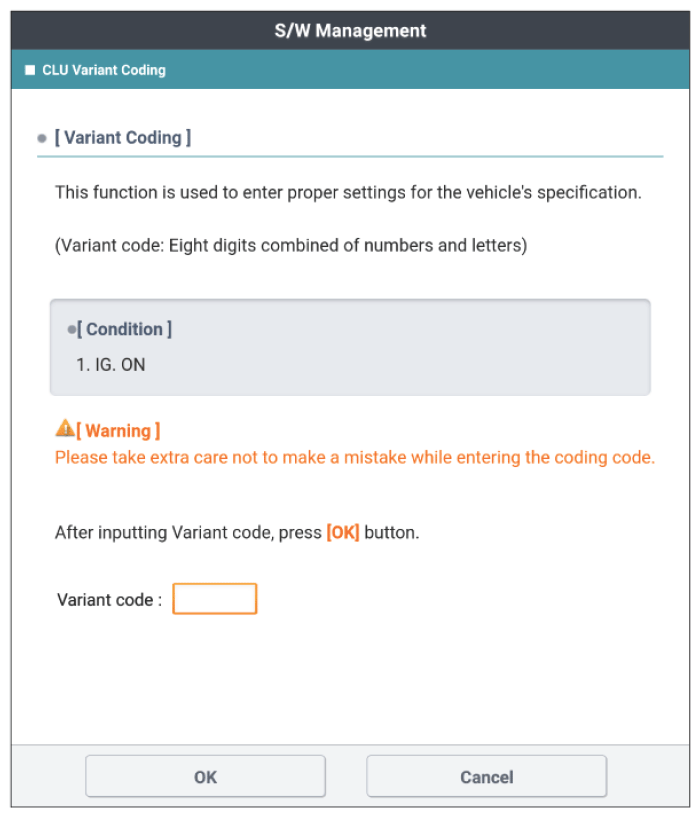

G16884343Courtesy of KIA MOTORS AMERICA, INC.

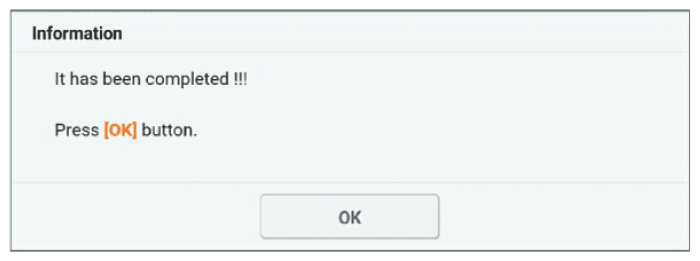

G16884344Courtesy of KIA MOTORS AMERICA, INC.
