Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

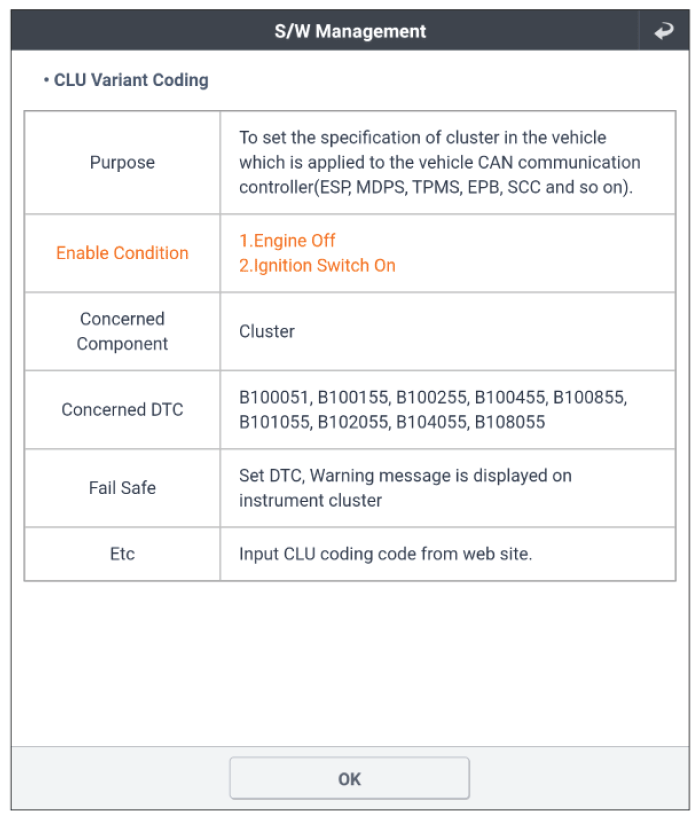

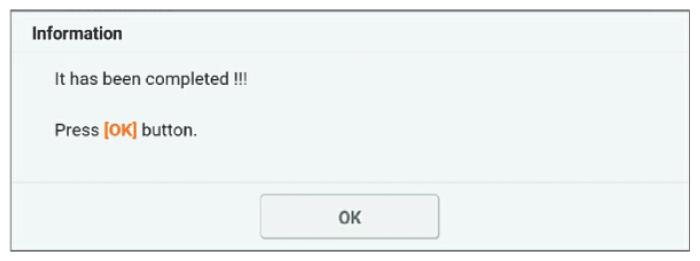

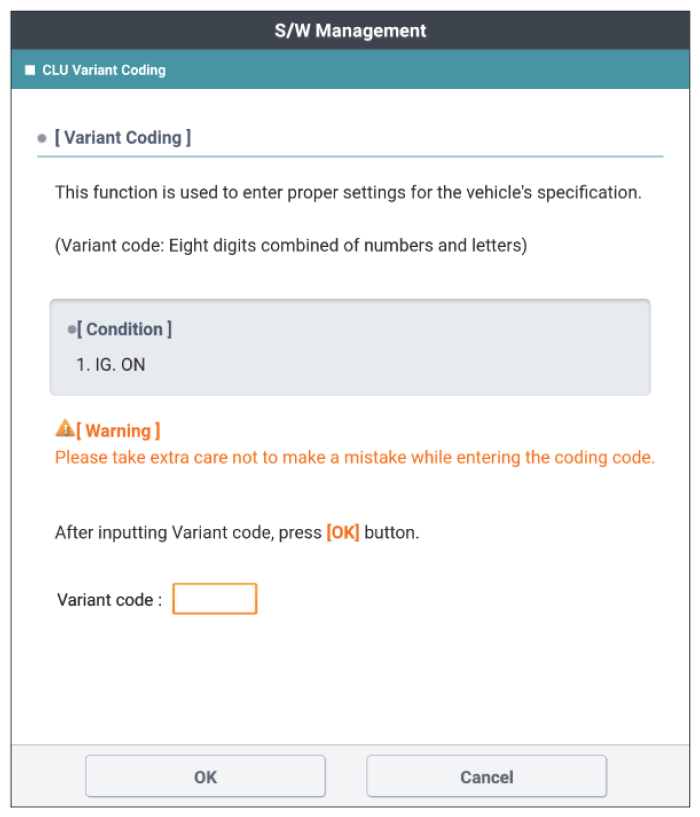

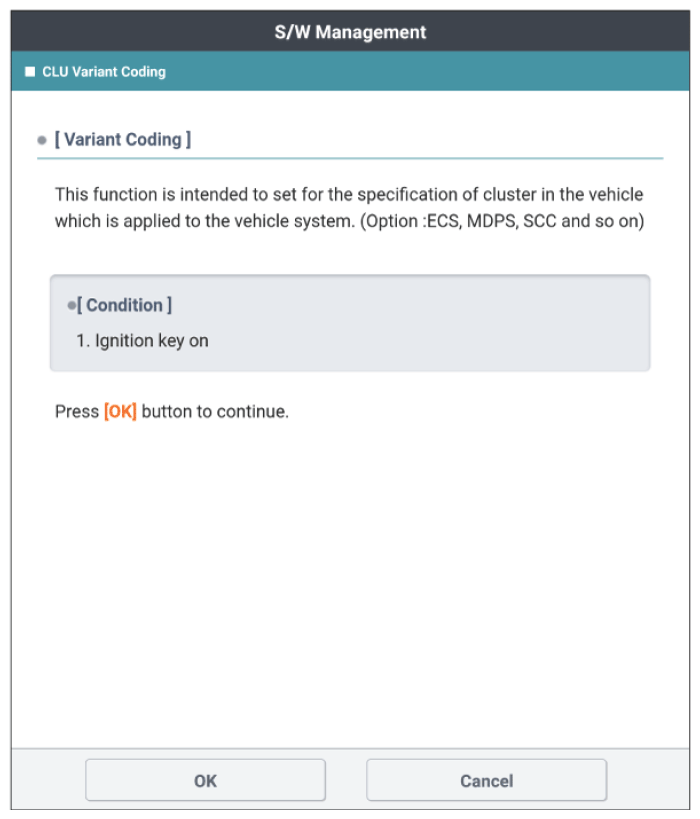

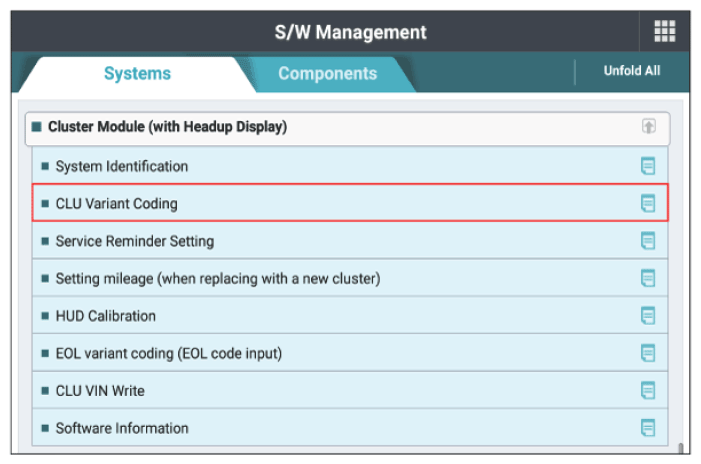

 Fig. 1 to 5
G16884252Courtesy of KIA MOTORS AMERICA, INC.
G16884253Courtesy of KIA MOTORS AMERICA, INC.
G16884254Courtesy of KIA MOTORS AMERICA, INC.
G16884255Courtesy of KIA MOTORS AMERICA, INC.
G16884256Courtesy of KIA MOTORS AMERICA, INC.
