Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

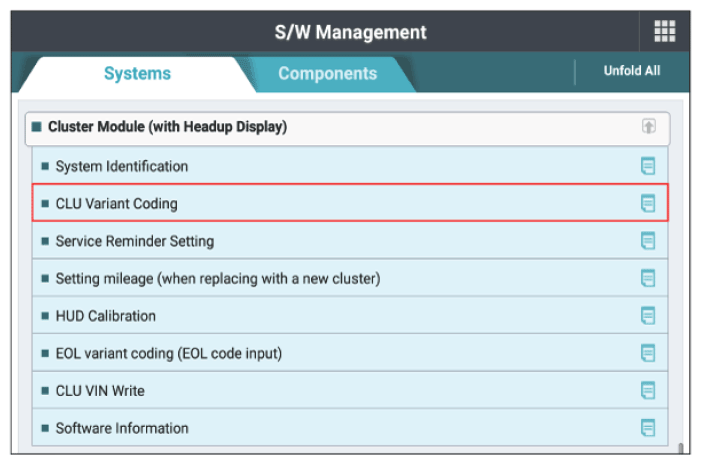

G16884370Courtesy of KIA MOTORS AMERICA, INC.

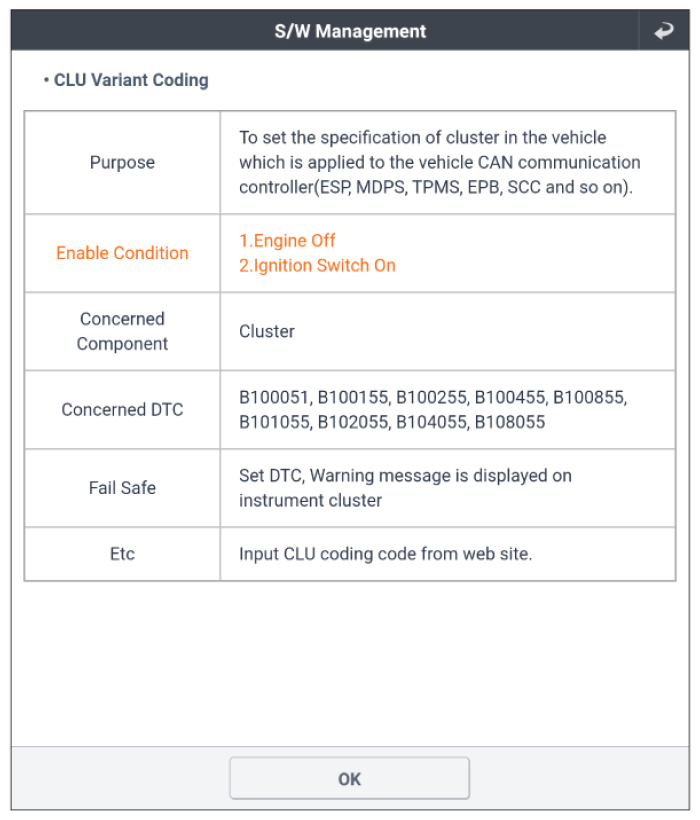

G16884371Courtesy of KIA MOTORS AMERICA, INC.

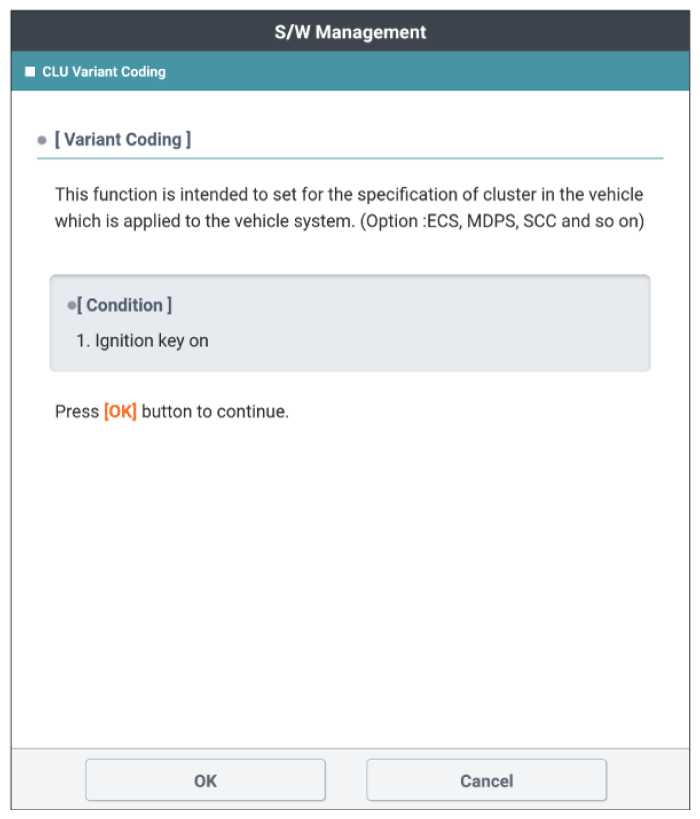

G16884372Courtesy of KIA MOTORS AMERICA, INC.

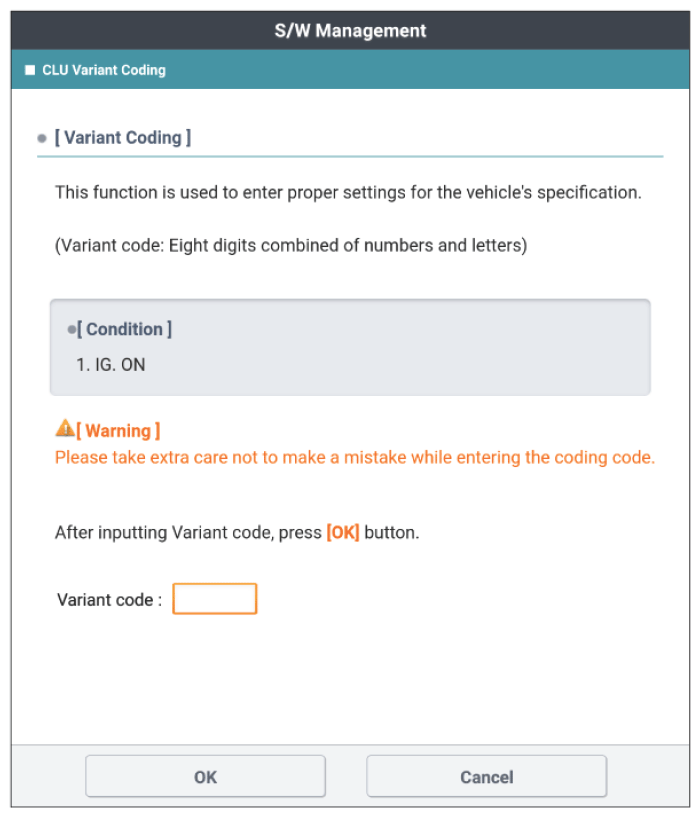

G16884373Courtesy of KIA MOTORS AMERICA, INC.

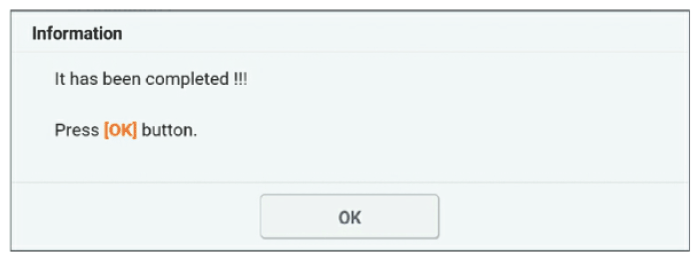

G16884374Courtesy of KIA MOTORS AMERICA, INC.
