Home › Kia › 2024 › EV9 Wind › Repair and Diagnosis › Electrical › Gauges › Cluster Module Diagnosis › DTC B1008-55: MDPS Present Error - Coding Code Error › System Inspection › Vehicle S/W Management

Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

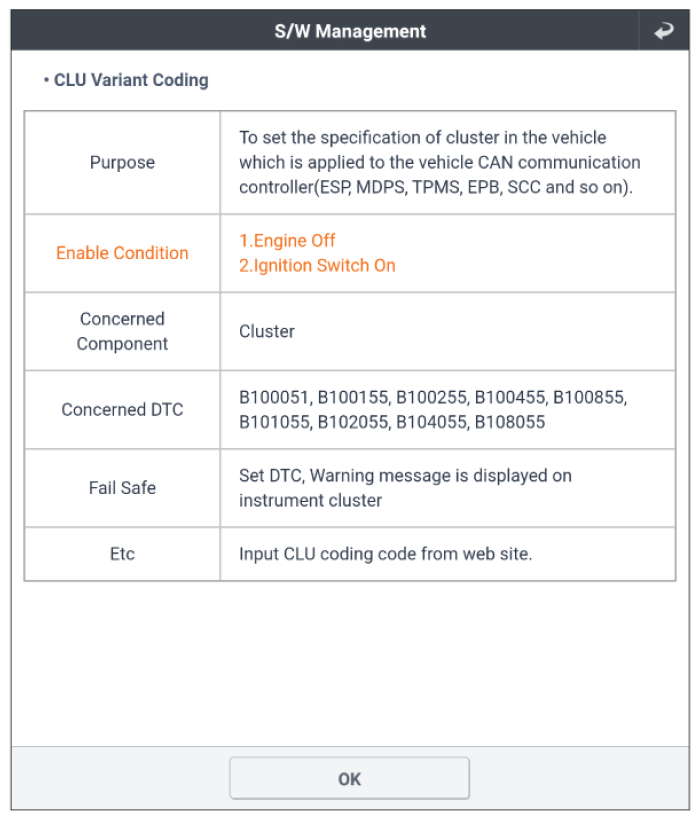

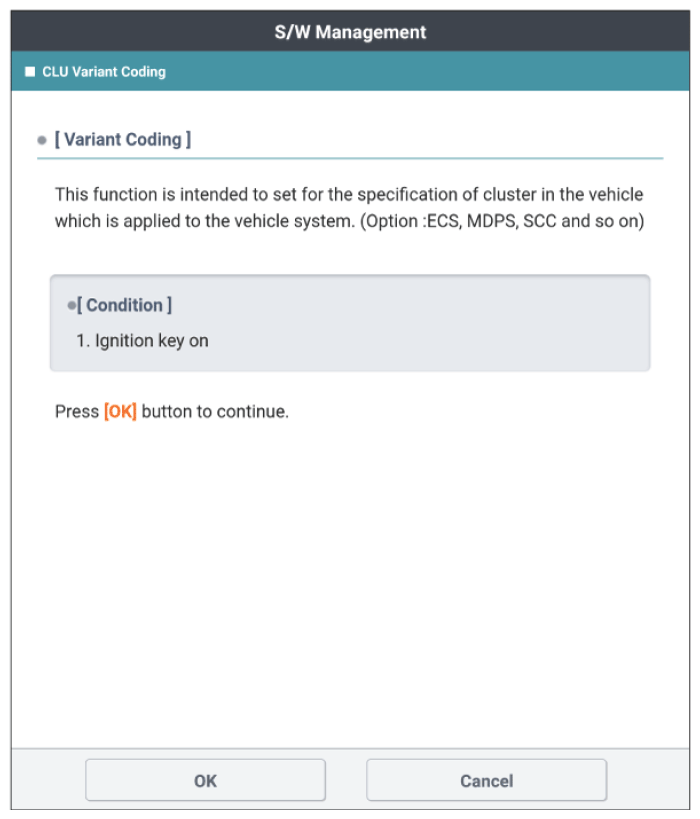

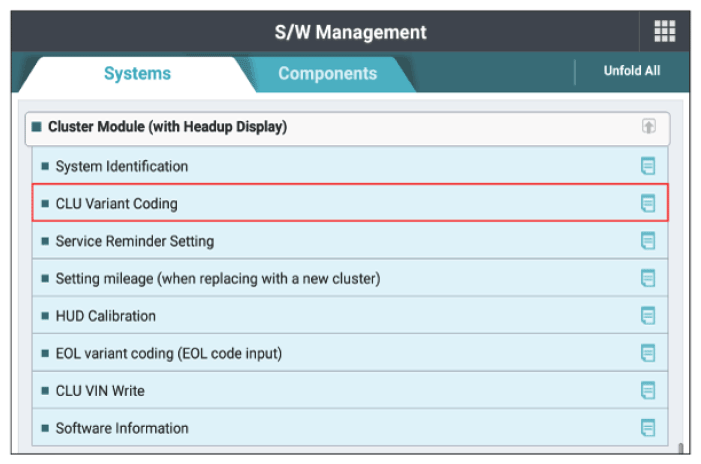

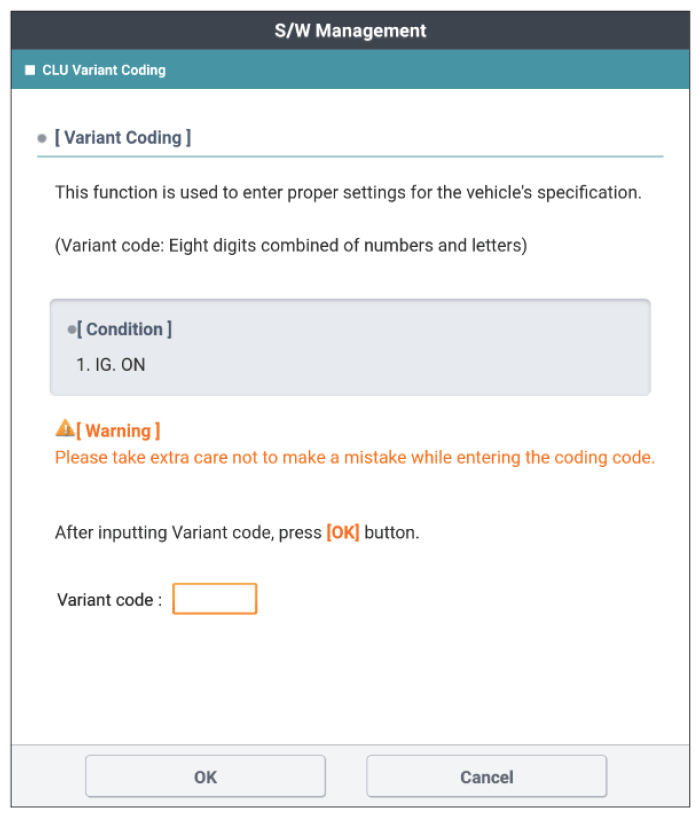

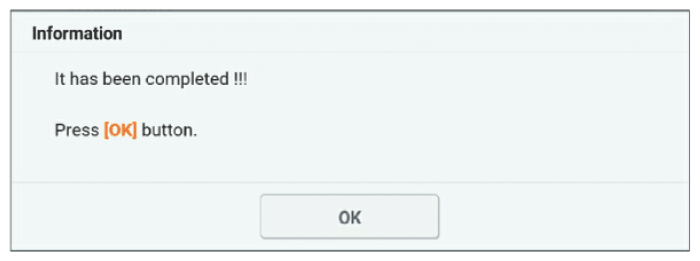

 Fig. 1 to 5
G16884444Courtesy of KIA MOTORS AMERICA, INC.
G16884445Courtesy of KIA MOTORS AMERICA, INC.
G16884446Courtesy of KIA MOTORS AMERICA, INC.
G16884447Courtesy of KIA MOTORS AMERICA, INC.
G16884448Courtesy of KIA MOTORS AMERICA, INC.
