Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

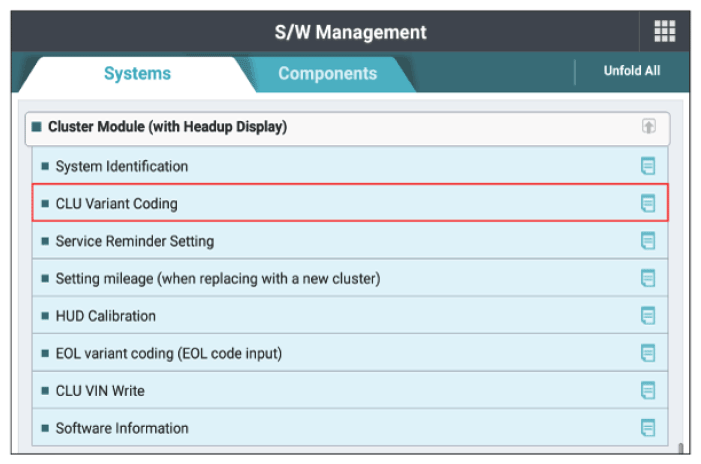

G16884546Courtesy of KIA MOTORS AMERICA, INC.

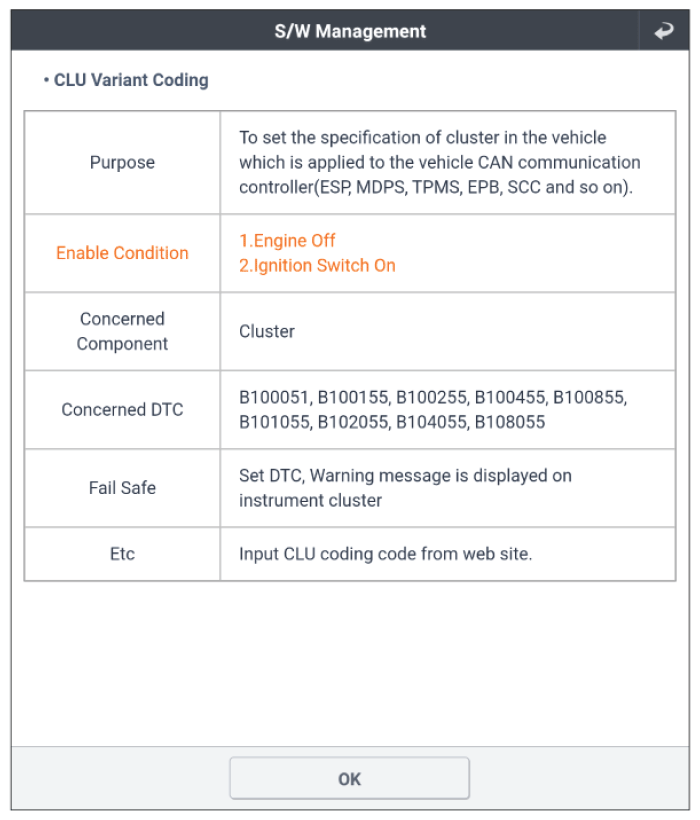

G16884547Courtesy of KIA MOTORS AMERICA, INC.

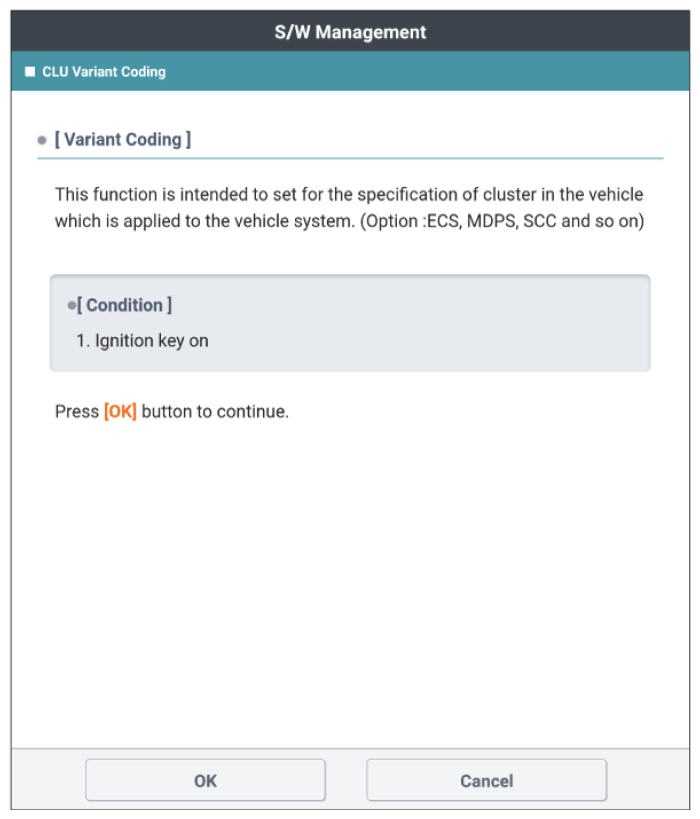

G16884548Courtesy of KIA MOTORS AMERICA, INC.

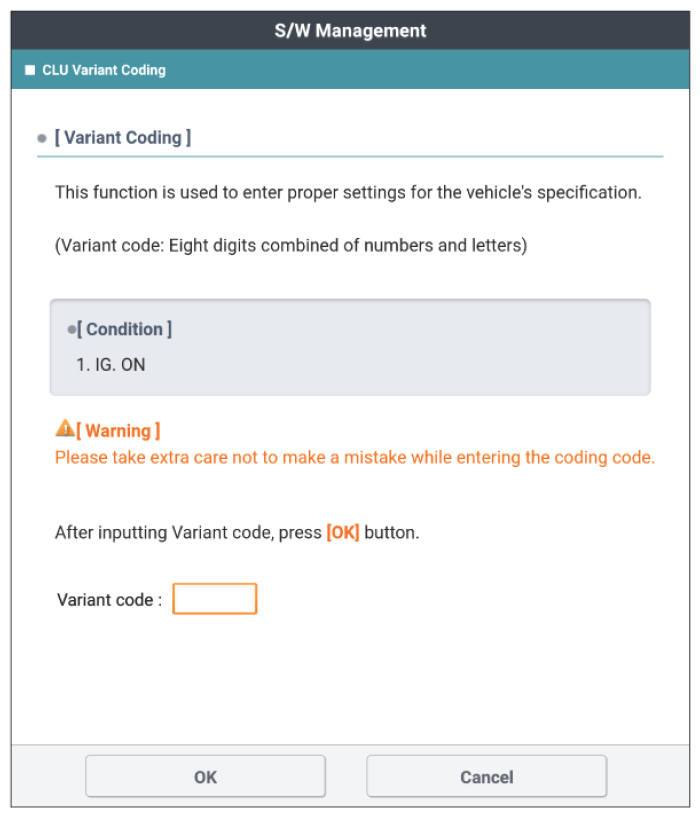

G16884549Courtesy of KIA MOTORS AMERICA, INC.

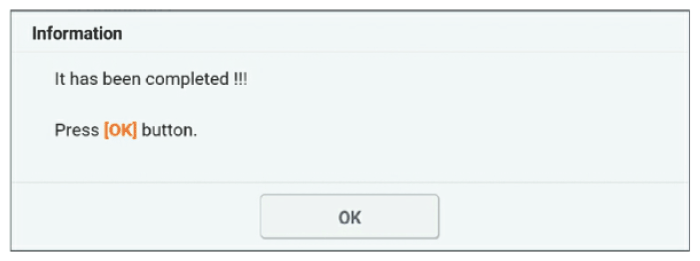

G16884550Courtesy of KIA MOTORS AMERICA, INC.
