Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER )

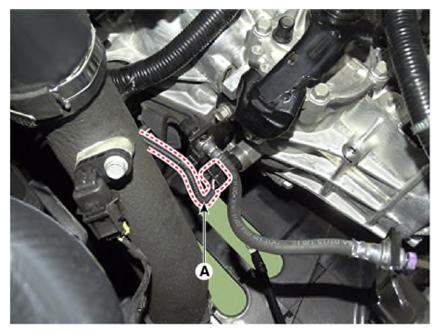

Disconnect the neutral switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

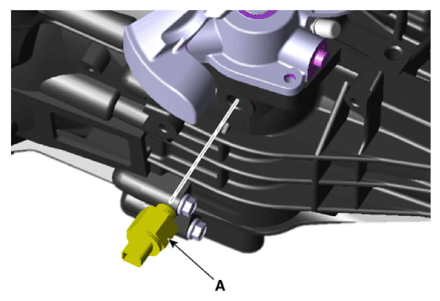

Remove the neutral switch (A).

Tightening torque:

39.2 - 58.9 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
