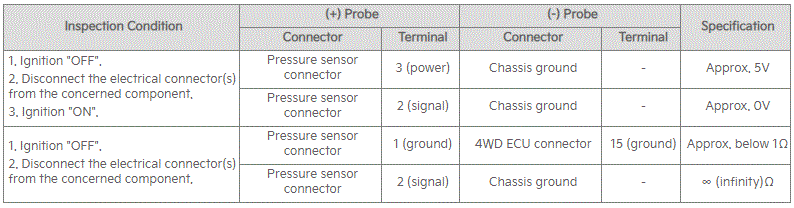

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
• If problem still occurs, replace AWD hydraulic motor and Go to "Verification Of Repair " procedure.

No Good

• Repair or replace as necessary and Go to "Verification Of Repair " procedure.
