Vehicle S/W Management
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to Data Link Connector (DLC). 2. Select the menu "Vehicle S/W Management " with KDS. 3. Perform "Air Bleeding Mode" in "Vehicle S/W Management" with KDS. 4. After this procedure, go to "Verification of Repair" procedure. |
Fig.1 to 4 |

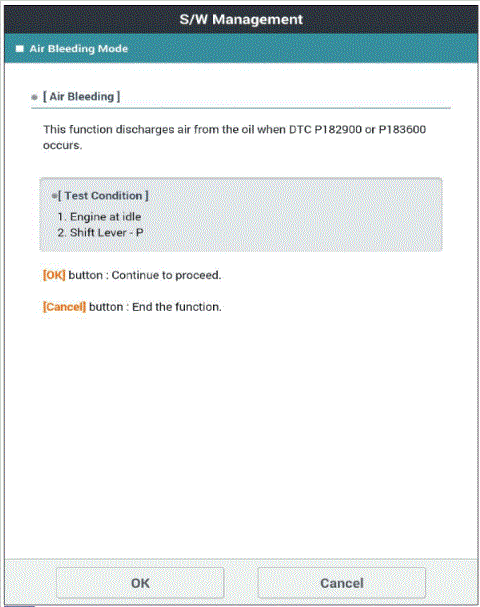

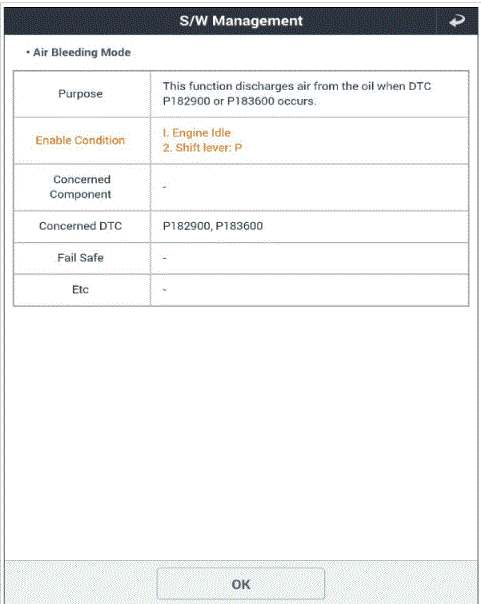

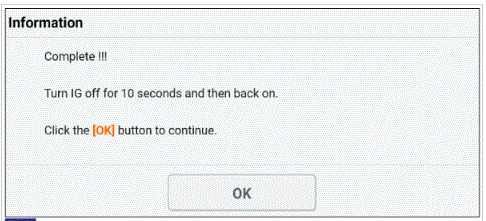

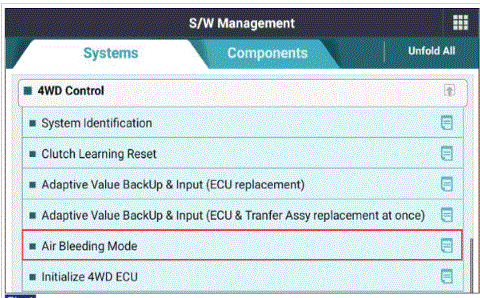

Fig.1 to 4) "Air Bleeding Mode" screen
Good
• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "Verification Of Repair " procedure.
No Good
• If the fault is still present, Go to "Wiring Inspection " procedure.
