Removal And Installation: Removal

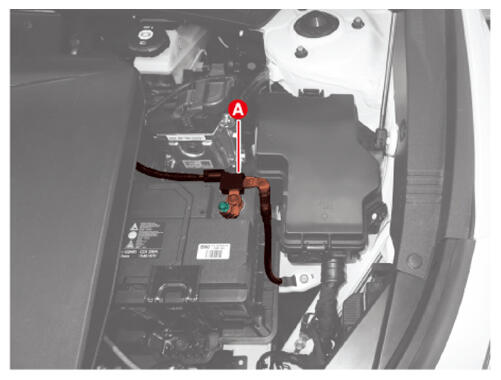

1. Separate the auxiliary battery (12 V))-) terminal (A) after removing the nut.

   Tightening torque:

   7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

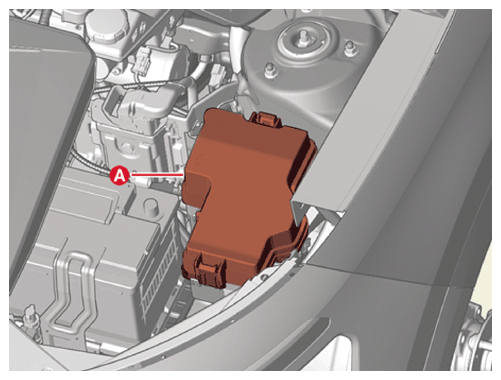

2. Remove the PE room junction box cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

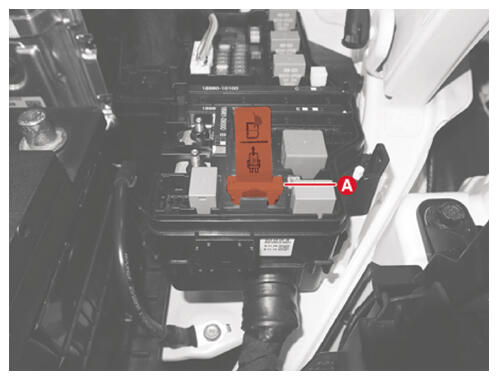

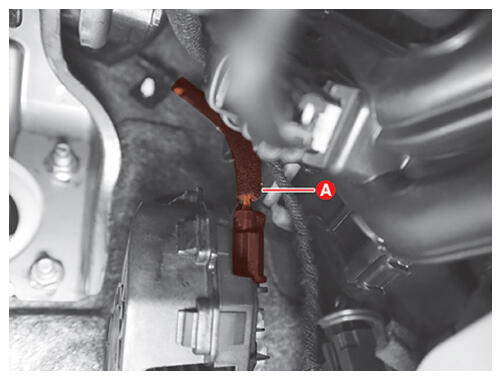

3. Disconnect the high voltage service interlock connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   WARNING:

   • Wait more than 5 minutes for capacitor of the high voltage battery system to be discharged completely.
   • Do not close the PE room junction box cover as the high voltage service interlock connector may be connected.

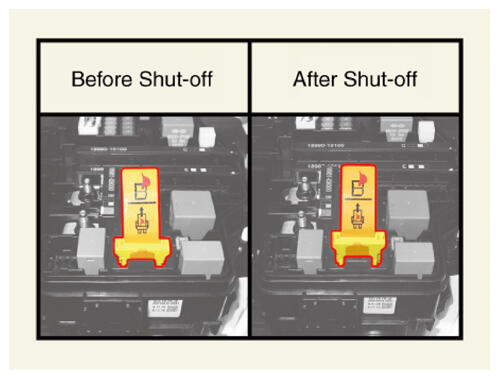

   NOTE: The high voltage service interlock connector cannot be completely removed.

   Courtesy of KIA MOTORS AMERICA, INC.

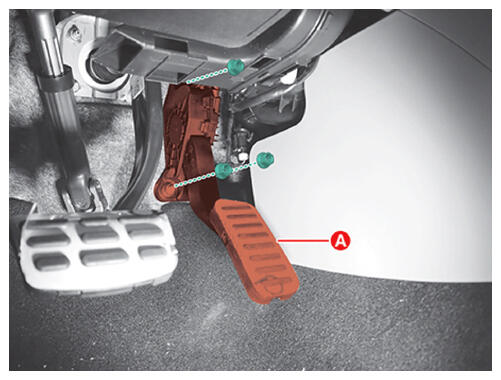

Tightening torque:

12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb.ft)
