Ignition Switch: Inspection

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

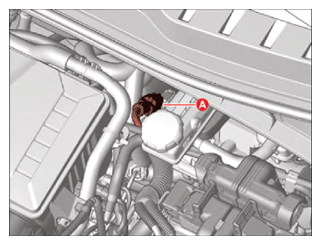

Turn the IG OFF and disconnect the low voltage (12 V) lithium battery (+) connector (A).
Information

Disconnect the connector in the engine room to shut the 12 V power off since the auxiliary battery (12 V) is integrated into the high voltage battery.

Courtesy of KIA MOTORS AMERICA, INC.

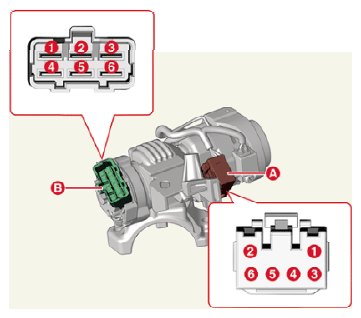

Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.

Courtesy of KIA MOTORS AMERICA, INC.

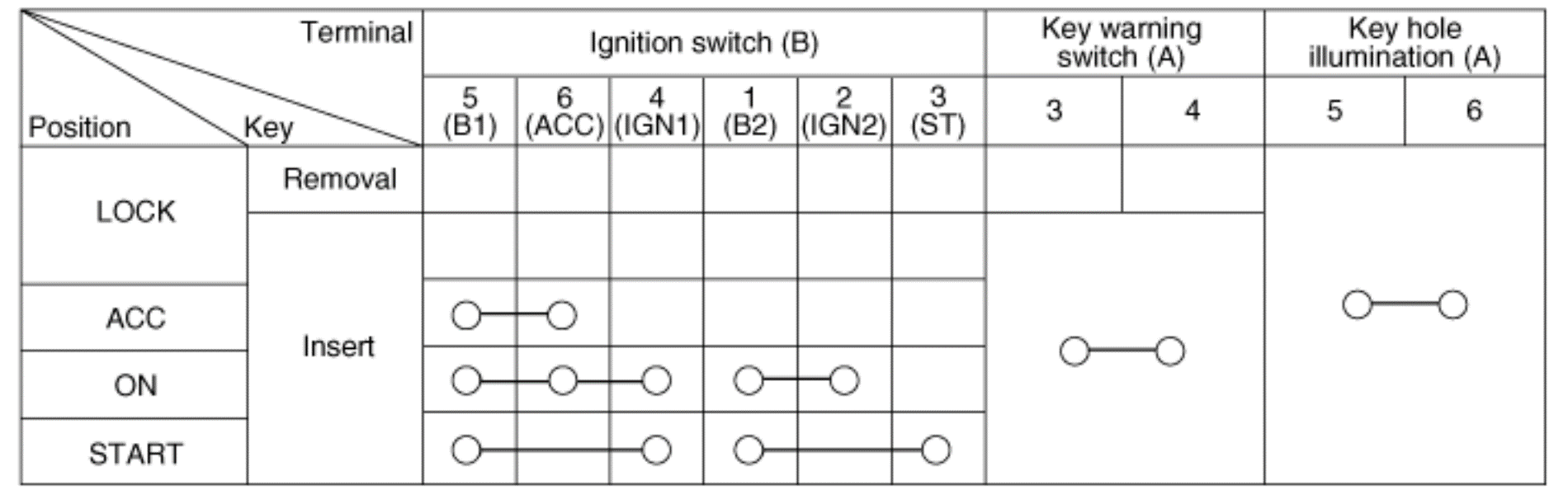

Check for continuity between the terminals.

Courtesy of KIA MOTORS AMERICA, INC.
