Electronic Throttle Control (ETC) Motor

  1. Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.

    Specified value:  1.71 - 2.09Ω

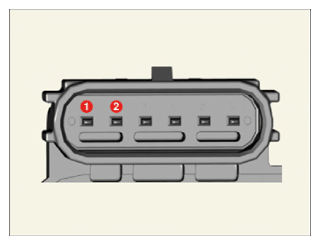

    G15767099Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    1 Motor (-)
    2 Motor (+)
