Smart Key Unit: Inspection: Buzzer

Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

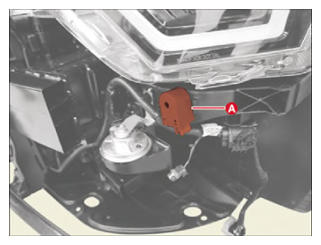

Disconnect the buzzer connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

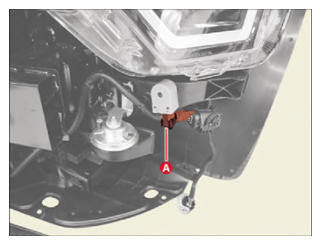

Remove the buzzer (A).

Courtesy of KIA MOTORS AMERICA, INC.

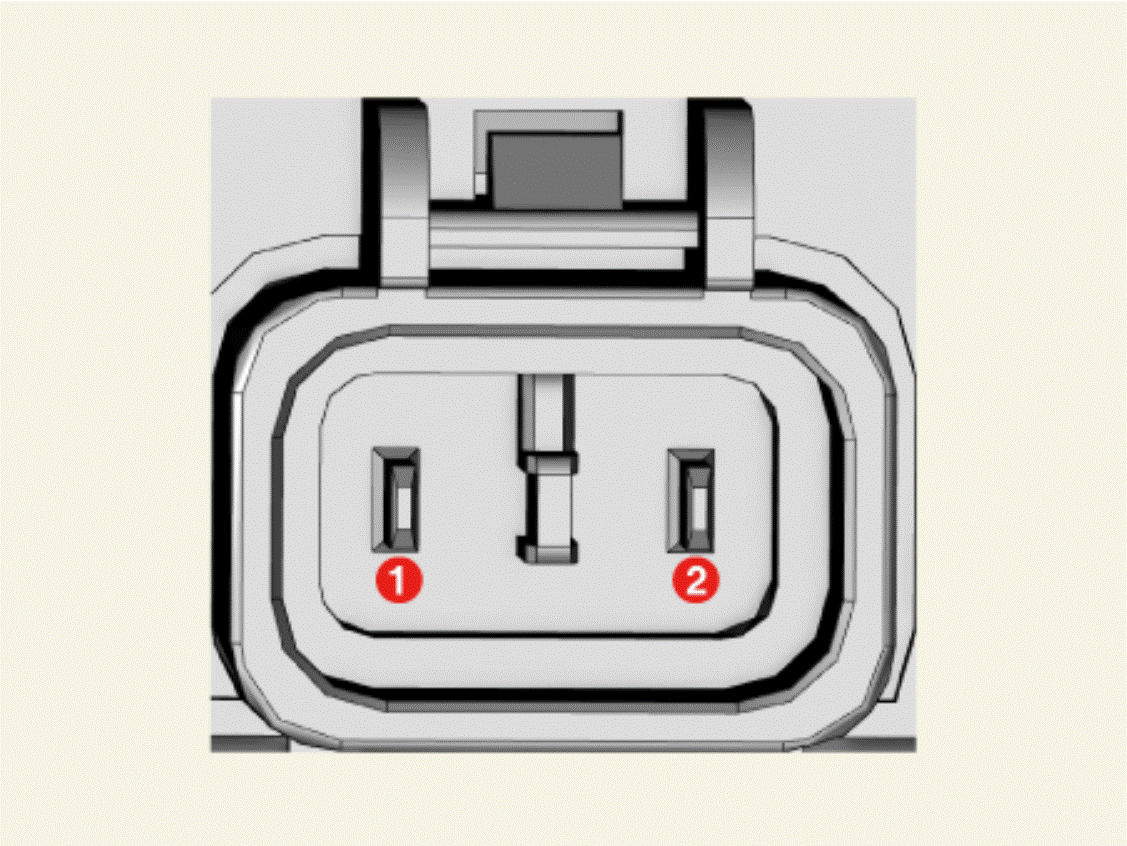

Check for continuity between the terminals.

Courtesy of KIA MOTORS AMERICA, INC.
