Home
›
Kia
›
2024
›
Niro Plug-In Hybrid EX
›
Repair and Diagnosis
›
Hybrid/Electric Powertrain
›
Battery Management Systems
›
Hybrid Control System (PHEV)
›
Hybrid Power Control Unit (HPCU)
›
Components And Components Location
›
Component
Components And Components Location: Component

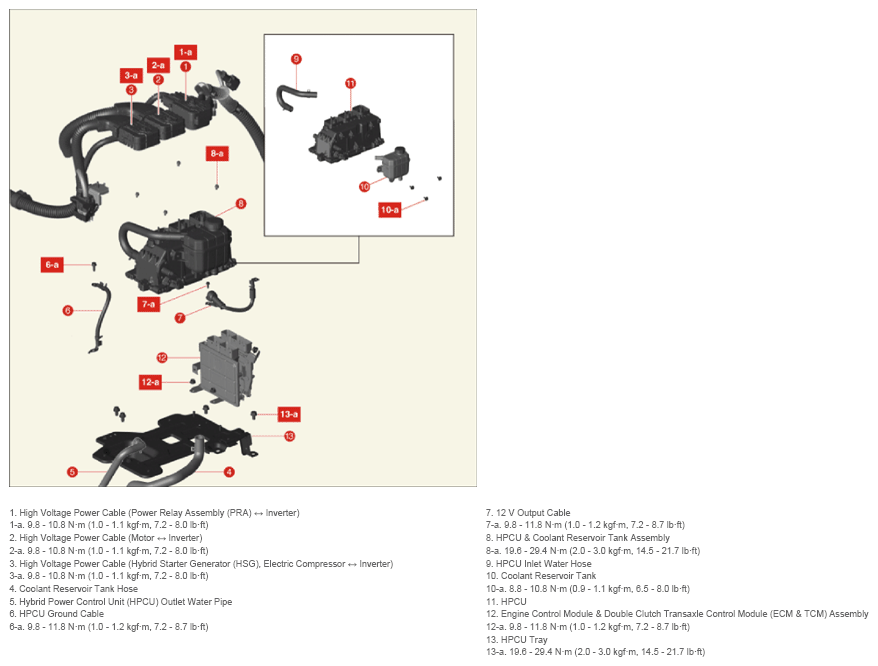

Fig 1: Hybrid Power Control Unit Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
