Front Door Lock Module

  1. Remove the front door module.

    (Refer to Body - " FRONT DOOR MODULE  ")

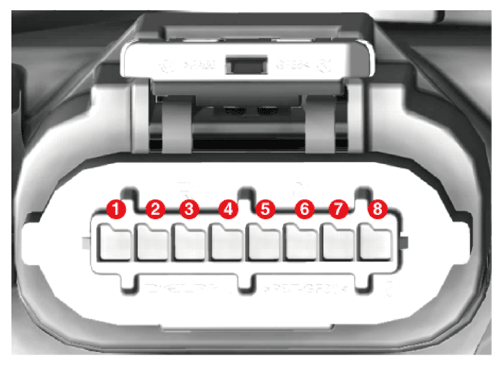

  2. Disconnect the connector from the door lock module.
    G16426115Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    LH RH
    1 - Motor (CL)
    2 - Motor (COM)
    3 Switch (COM) -
    4 Lock/Unlock Switch (AJAR)
    5 Switch (AJAR) Lock/Unlock
    6 - Switch (COM)
    7 Motor (COM) -
    8 Motor (CL) -
  3. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

    [LH]

    Terminal Function
    Central Lock Central Unlock
    8 + -
    7 - +
    3 - 4 ON → OFF OFF → ON
    3 - 5 Door open & half latching: ON
    Full latching: OFF

    [RH]

    Terminal Function
    Central Lock Central Unlock
    1 + -
    2 - +
    6 - 5 ON → OFF OFF → ON
    6 - 4 Door open & half latching: ON
    Full latching: OFF
