Connector And Terminal Function

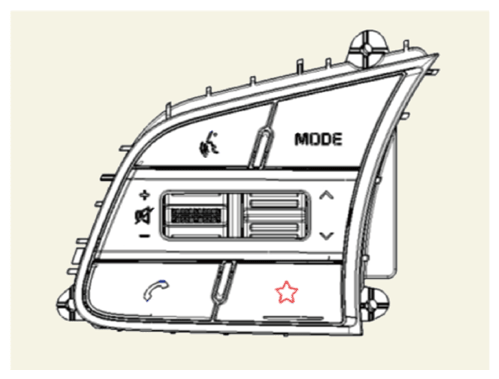

[Audio + Bluetooth + Voice]

Courtesy of KIA MOTORS AMERICA, INC.

Connector	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Audio switch (+)
	2	-
	3	Illumination (+)
	4	-
	5	Illumination (-)
	6	Audio switch (+)

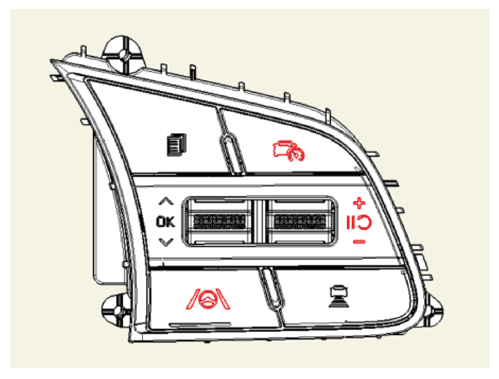

[Trip + SCC + LFA]

Courtesy of KIA MOTORS AMERICA, INC.

Connector	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Trip switch 1 (+)
	2	Trip switch 2 (+)
	3	Illumination (+)
	4	-
	5	Illumination (-)
	6	Trip switch (-)
