Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

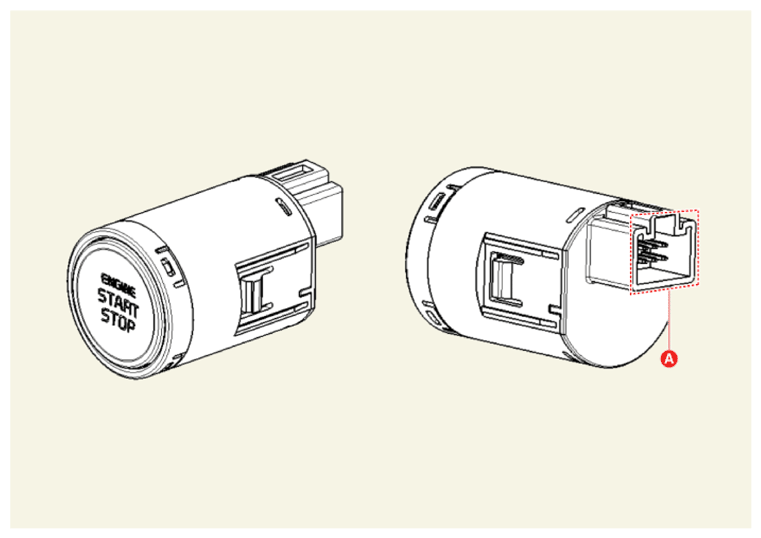

Connector A	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	SSB Switch 1
	2	-
	3	SSB Illumination (+)
	4	Immobilizer (Power)
	5	-
	6	Ground
	7	SSB Switch 2
	8	Illumination (-)
	9	-
	10	Immobilizer (Ground)
