Manual Window Motor

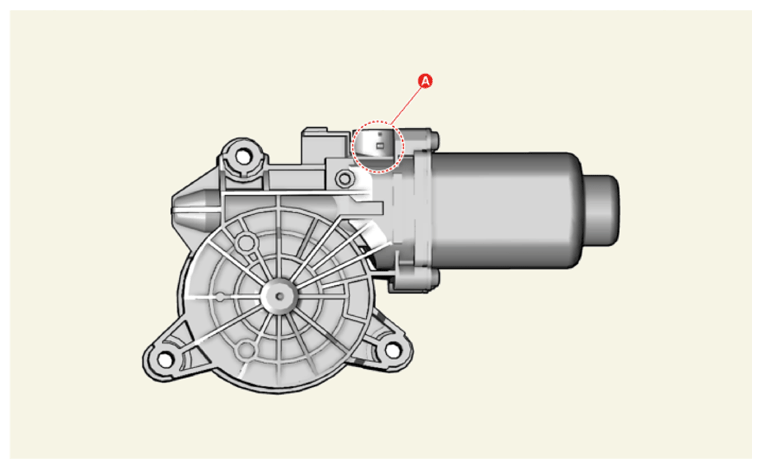

G16426133Courtesy of KIA MOTORS AMERICA, INC.
Connector A Position Operate Terminal
1 2
G16426134Courtesy of KIA MOTORS AMERICA, INC.
 LH Up (Counterclockwise) + -
Down (Clockwise) - +
RH Up (Clockwise) + -
Down (Counterclockwise) - +
